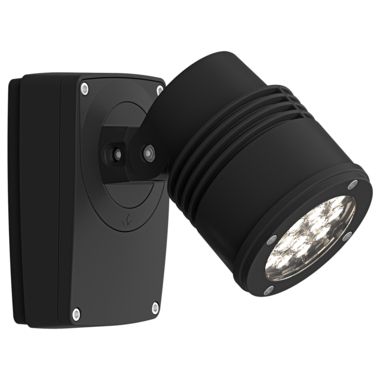

Centria C4 Foundation - LS1012

A compact and versatile surface mount luminaire with remote driver.

Product Overview

The most compact and versatile, remote driver surface mounted luminaire in its class, featuring a light output and energy efficiency surpassing 35 W Metal Halide. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. Unique and flexible mounting with glare control accessories enable installation in multiple orientations including two axes of adjustment making it ideal for direct or indirect applications. Available with integrated Dali control or as non-dimmable.

Features

Lumen Output 2,450 lm Power Consumption 24 W Typical Lifetime > 60,000 hours @ 50ºC ambient (B10, L70, TM21 Reported) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK7 Compliance ETL - USA & Canada CE RCM Color Options Warm White Cool White Data Sheet

Specifications

Videos

Webinar | Foundation Family
Watch the webinar introducing Lumascape's Foundation range of enhanced lighting controls

Accessories


LS6104 External Glare Shield

Product Configurator

Customise Centria C4 Foundation below

Power Consumption

For all non-dimming or DALI controlled luminaires

Required

24 W (24D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000 K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000 K (70 CRI, 3 SDCM)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

10°

Narrow (NR)

Narrow (NR)

13°

Narrow Medium (NM)

Narrow Medium (NM)

20°

Medium (ME)

Medium (ME)

26°

Wide (WD)

Wide (WD)

47°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Input Voltage

Required

220 to 240 Vac, 50 Hz (01)

220 to 240 Vac, 50 Hz (01)

Line Voltage

Control

Required

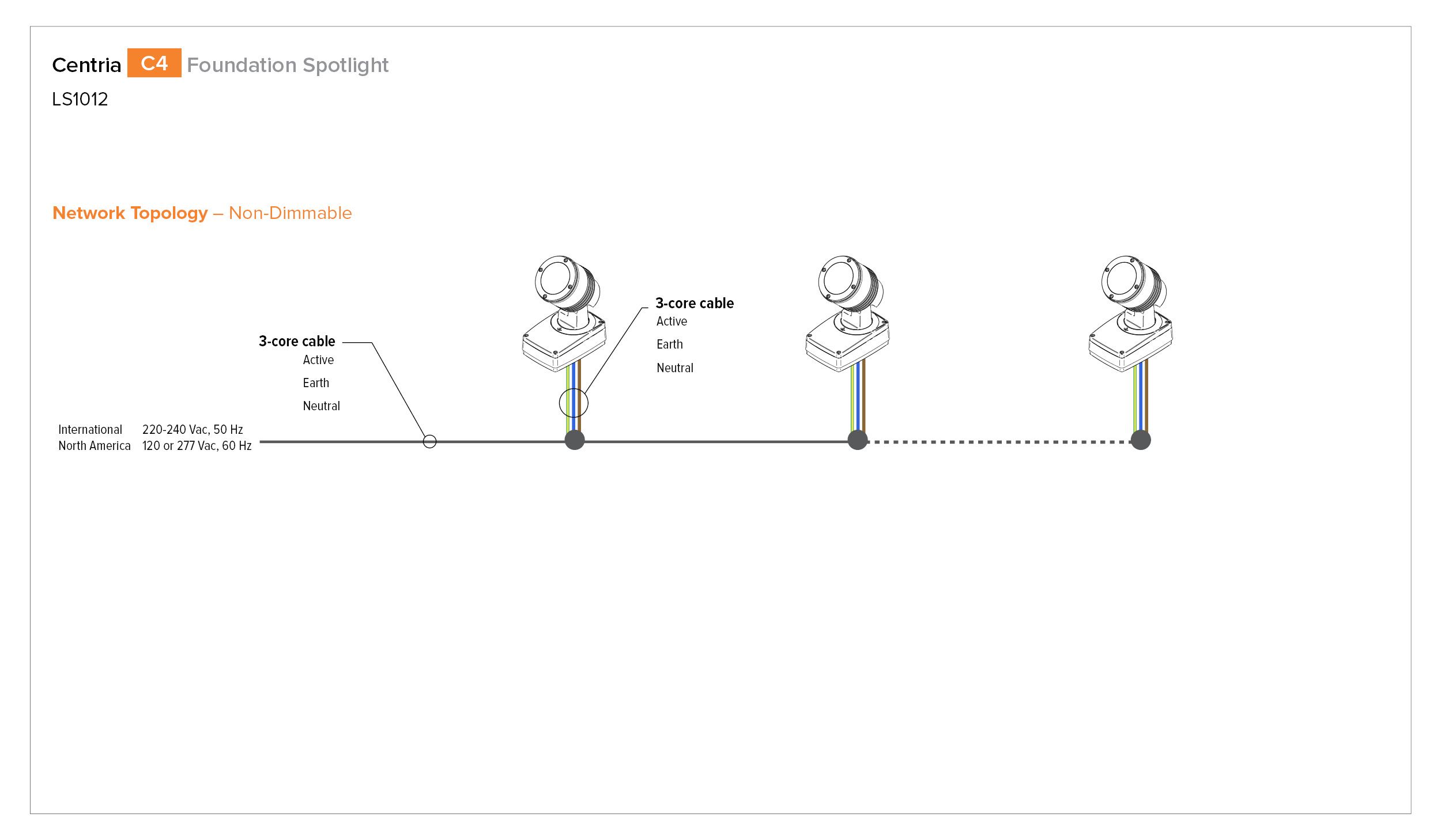

Non-Dimmable (ND)

For single color, non-dimming applications only.

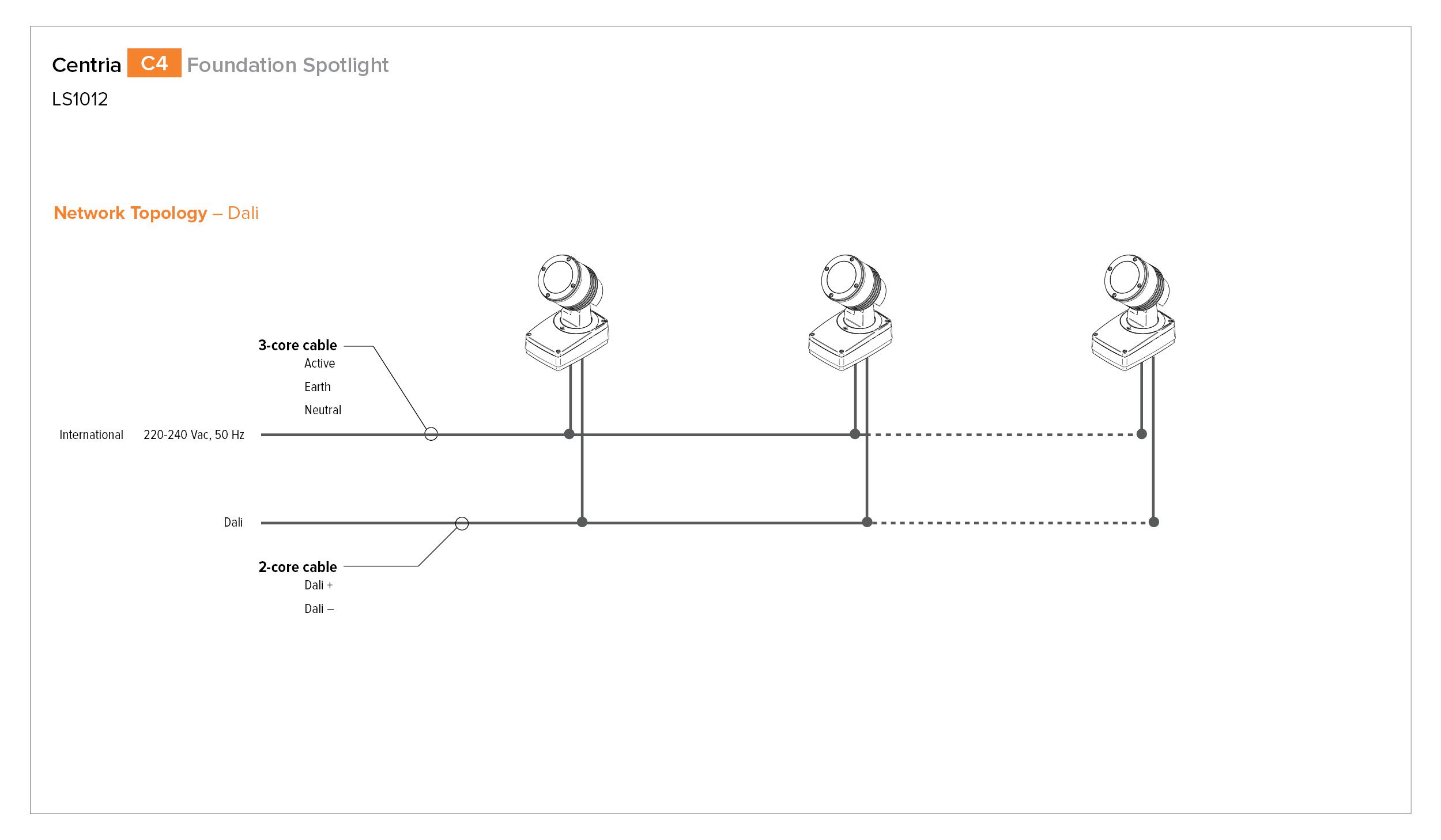

DALI 2 (DL)

DALI 2 Controller

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info
