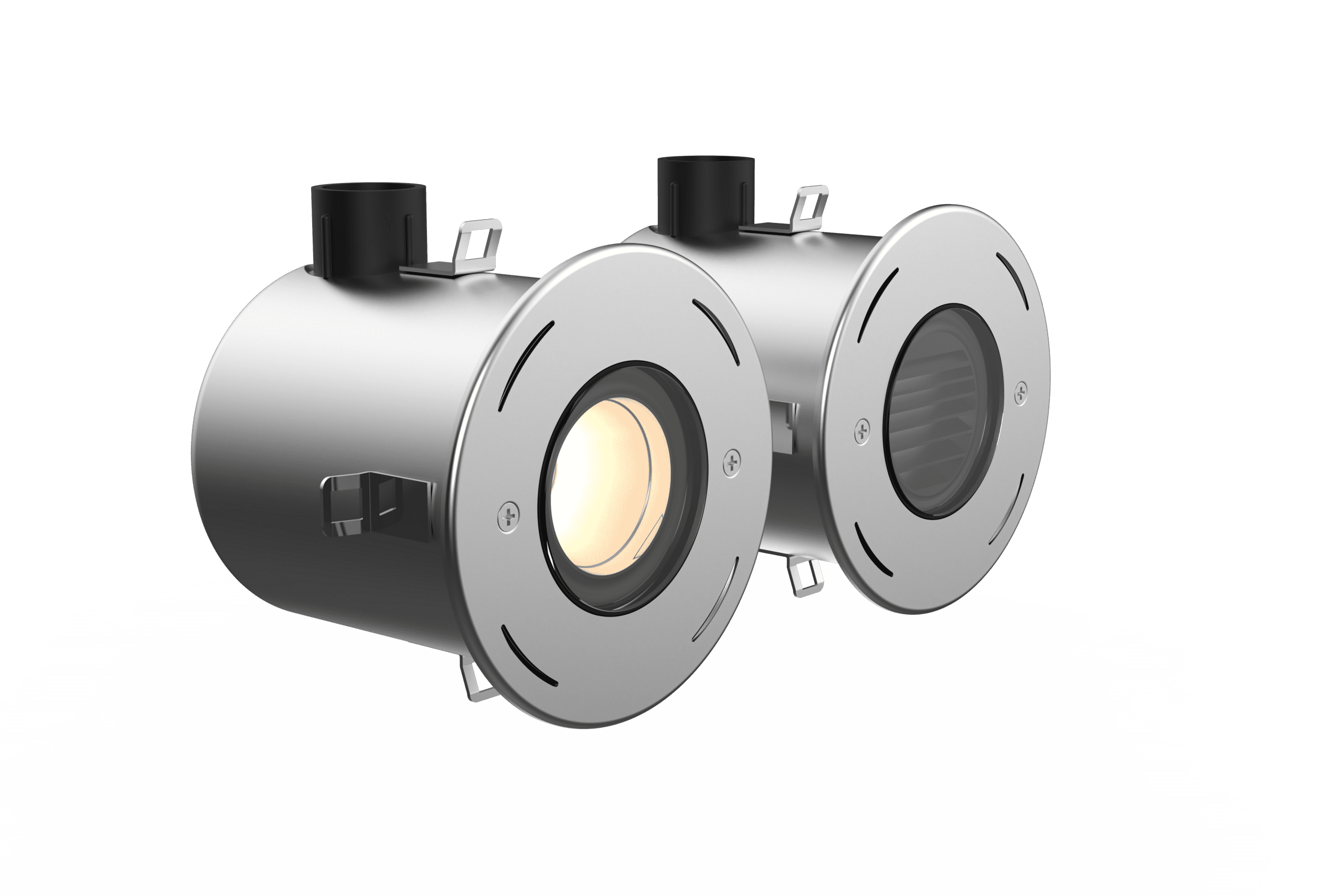

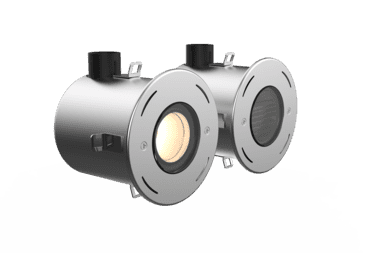

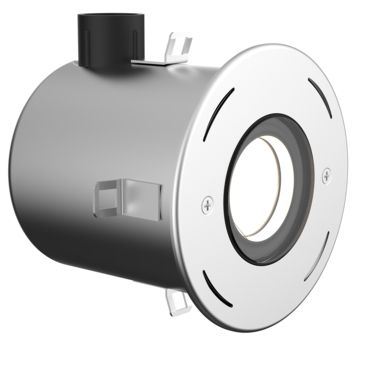

Nero COB NE2 - LS333ANS-2COB

A versatile 'swimming pool rated' underwater luminaire

Product Overview

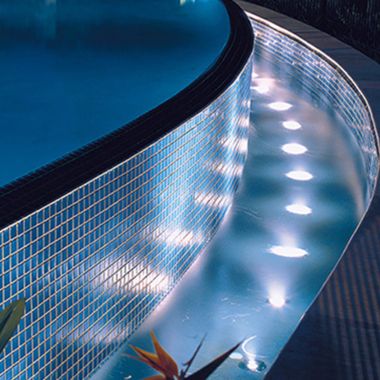

The Nero NE2 uses next-generation 'chip on board' technology to deliver powerful illumination and high energy efficiency.  The LED's are an excellent light source for swimming pools, given the very high lumen density and wider light distribution angles, illuminating the pool completely. This wider fill of light improves both safety and aesthetics. Availabe to order with either 0º or 15º tilt.

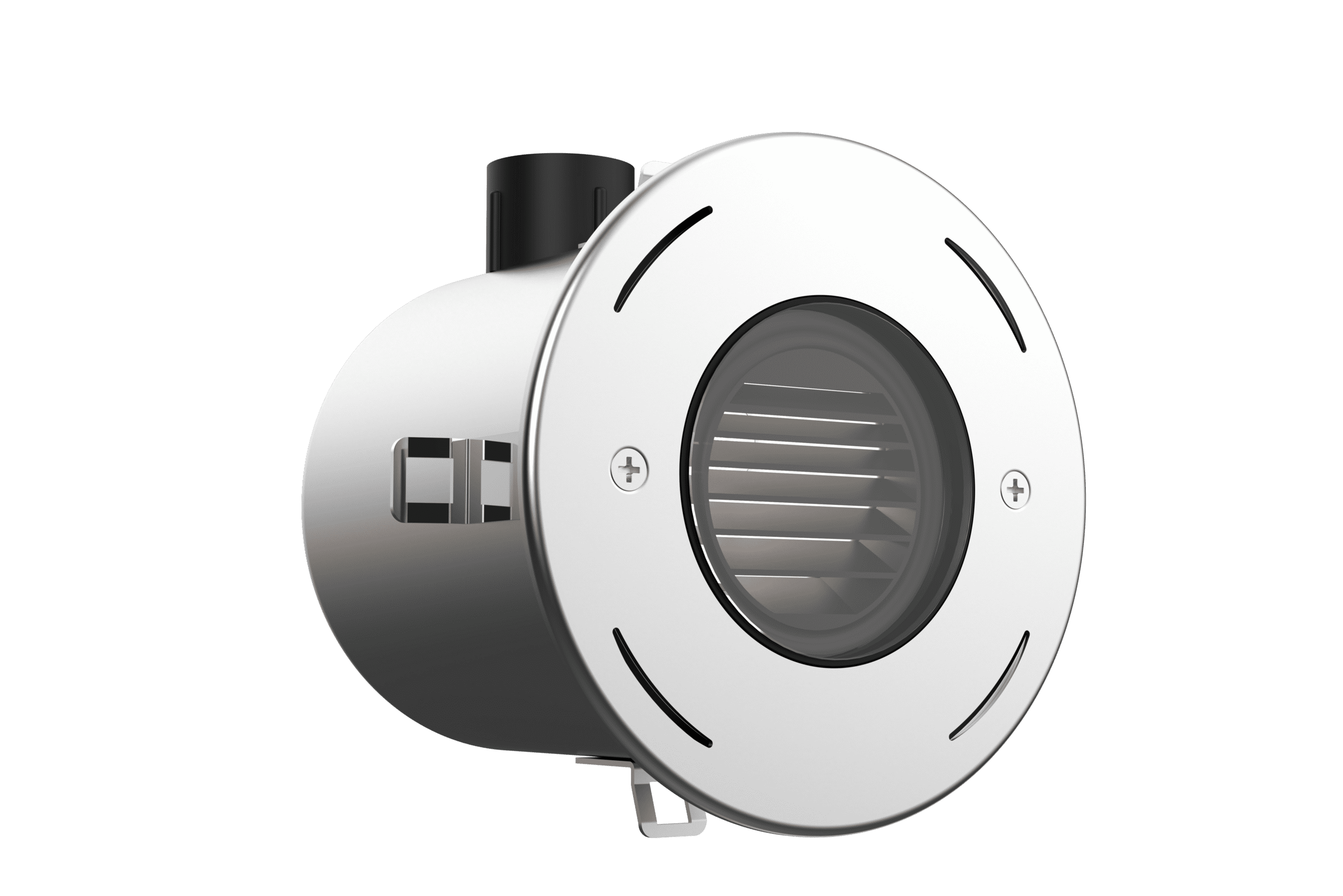

Darksky Configurations are available.

Features

Lumen Output 1,080 lm Power Consumption 15 W Typical Lifetime > 60,000 hours @ 50ºC ambient (B10, L70, TM21 Reported) Input Voltage Low Voltage: 30 Vdc Control Protocol PWM (0-10V, DMX) IP Rating IP68 to 6' (2 m) IK Rating IK10 Darksky Configuration < 0.5% Uplight, >100lm total Compliance CE RCM Darksky Color Options Warm White Cool White Data Sheet

Specifications

Product Configurator

Customise Nero COB NE2 below

Power Consumption

Required

15 W (15W)

8 W (8W)

Dark Sky Configuration Only

Light Source

Required

Static White (822)

Static White (822)

2,200 K (80 CRI, 3 SDCM)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Wide (WD)

Wide (WD)

40º

Wide Flood (WF)

Wide Flood (WF)

60º

Wide Horizontal (WH)

Wide Horizontal (WH)

65º x 45º

Soft Flood (SF)

Soft Flood (SF)

75º

Dark Sky (Internal Louvre) (DS)

Input Voltage

Required

30 Vdc (07)

30 Vdc (07)

Non-Dimmable

30 Vdc Dimmable (27)

30 Vdc Dimmable (27)

PWM Dimmable Driver

Tilt

Required

Tilt 0° (U)

Tilt 0° (U)

Tilt 15° (W)

Tilt 15° (W)

Cable Length

For custom cable lengths, contact Lumascape. Cable cannot be field installed.

Required

5 m (05)

8 m (08)

15 m (15)

20 m (20)

25 m (25)
