Facade

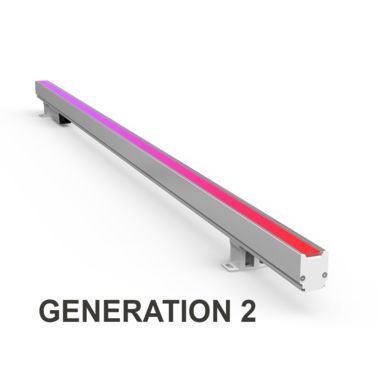

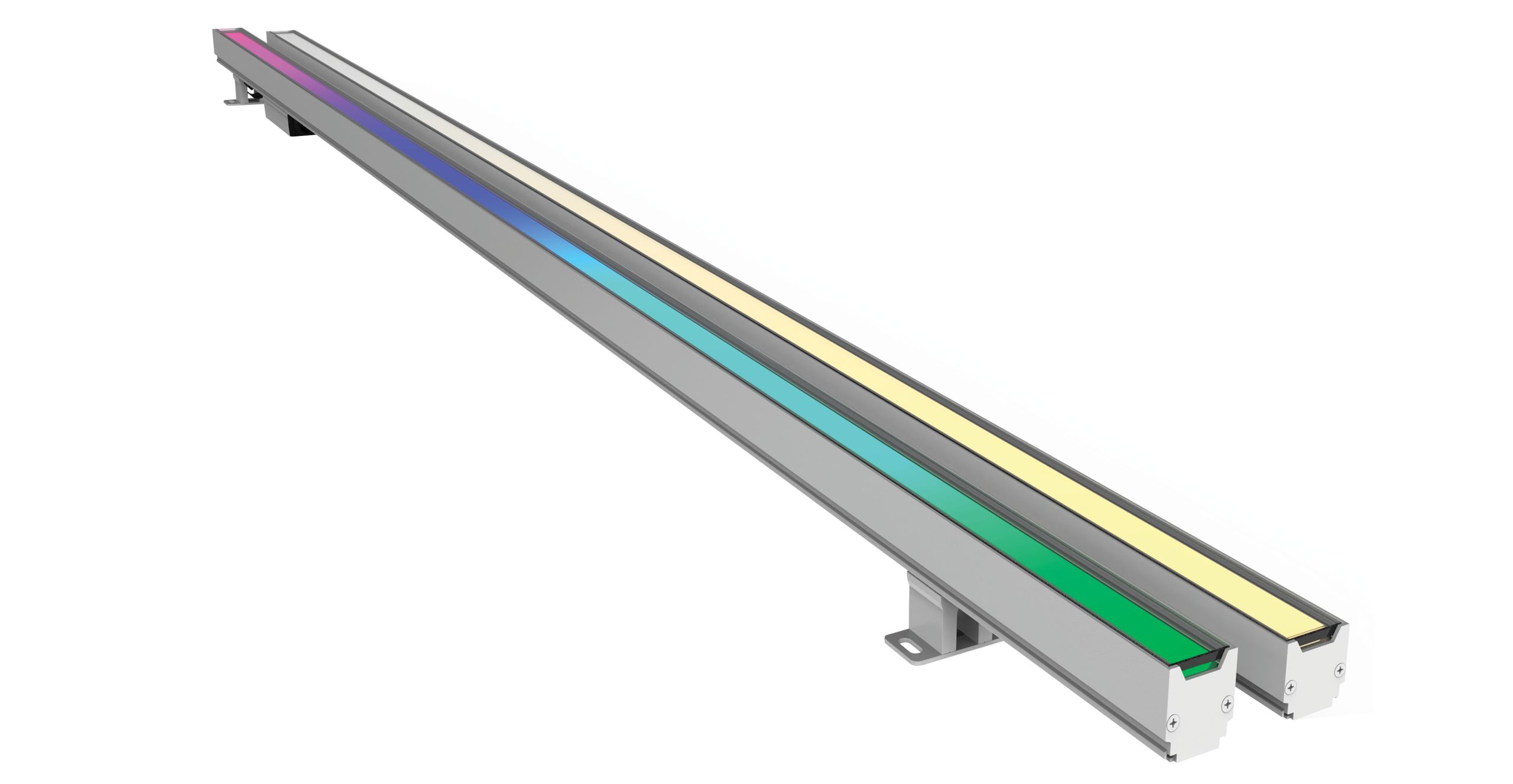

Linealux L1 Generation 2
Product Overview
Designed for direct view, the luminaire has excellent light blending properties, ensuring uniformity when it comes to colour brightness and blending. Control, addressing and monitoring is via full DMX/RDM through the Lumascape PowerSync™ data injector. RDM addressing means that fixtures can be installed in any order and swapped in and out at will.
Features
Lumen Output 485 lm/ft
LED Power 6 W/ft, 4 W/ft
Power Consumption 7 W/ft, 5 W/ft
Typical Lifetime > 72,000 hours @ 50ºC ambient (B10, L70, TM21 Reported)
Input Voltage Low Voltage 30-48 Vdc
Control Interface PowerSync™
Control Protocol DMX/RDM, Artnet
IP Rating IP66/IP67 (Passes IP68 Test)
IK Rating IK06
Compliance
Color Options
Data Sheet
Color Options
Data Sheet
Specifications
Videos
Product Highlights | Vestalux V1
Designed for direct view, this luminaire has exceptional light blending properties, ensuring uniformity in color brightness and blending.
Webinar | Vestalux V1
Watch the webinar introducing the next-generation Vestalux V1 to Lumascape's Direct View family
Accessories
| Control | |
| LS6550 | PowerSync Data Injector, Low Voltage, Generation 2 (Required for PS installations only) |
| Power Supplies | |
| LSLED40W-48V | DC Power Supply, 48 V, 40 W |
| LSLED80W-48V | DC Power Supply, 48 V, 80W |
| LSLED120W-48V | DC Power Supply, 48 V, 120 W |
| LSLED240W-48V | DC Power Supply, 48 V, 240 W |
| LSLED320W-48V | DC Power Supply, 48 V, 320 W |
| LSLED480W-48V | DC Power Supply, 48 V, 480 W |
| LSLED600W-48V | DC Power Supply, 48 V, 600 W |
| Wiring | |
| LS6426-PS | Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync |
| LS6427-PS | Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync |
| LS6426-ND | Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync |
| LS6427-ND | Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync |
Product Configurator

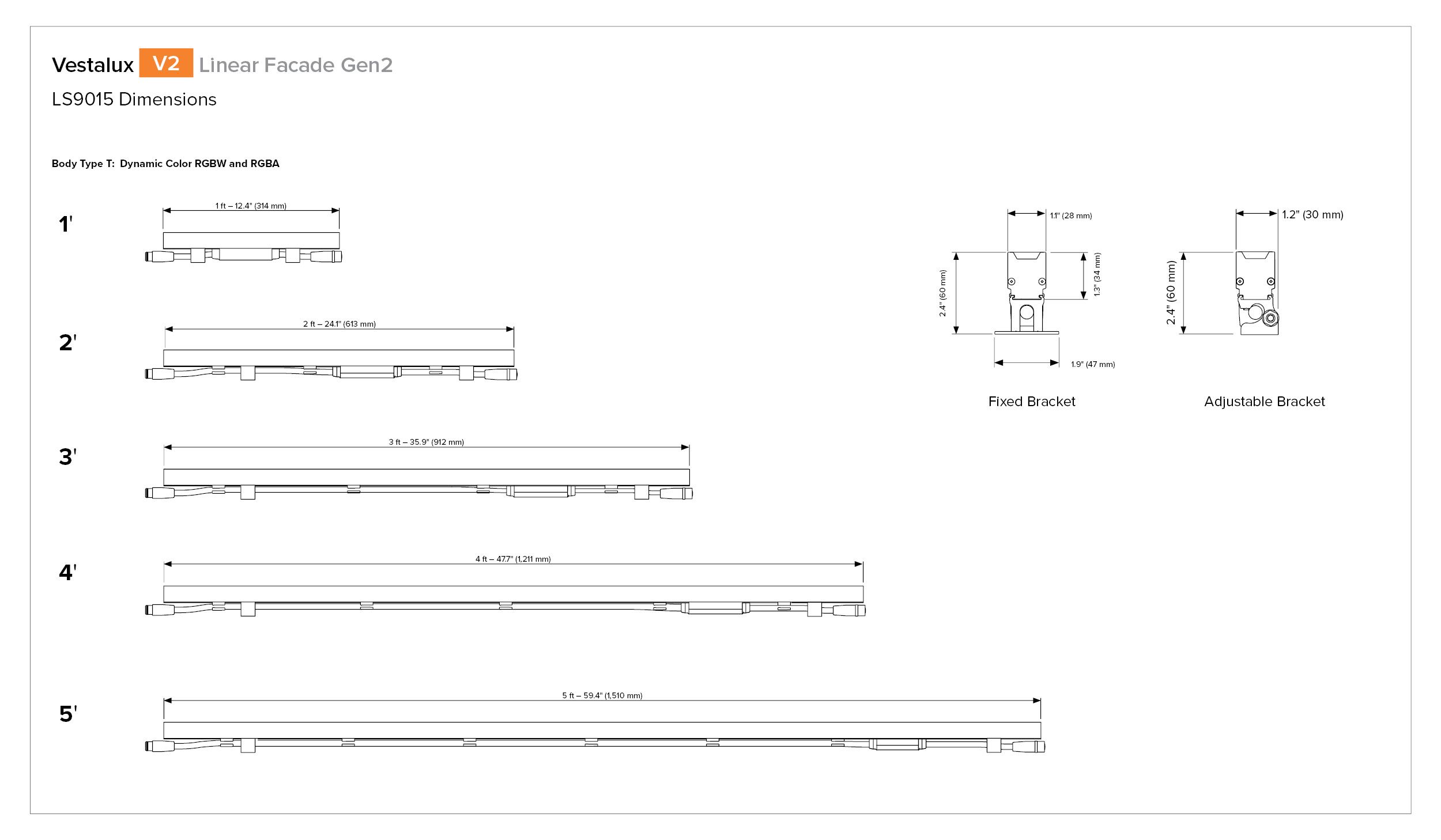

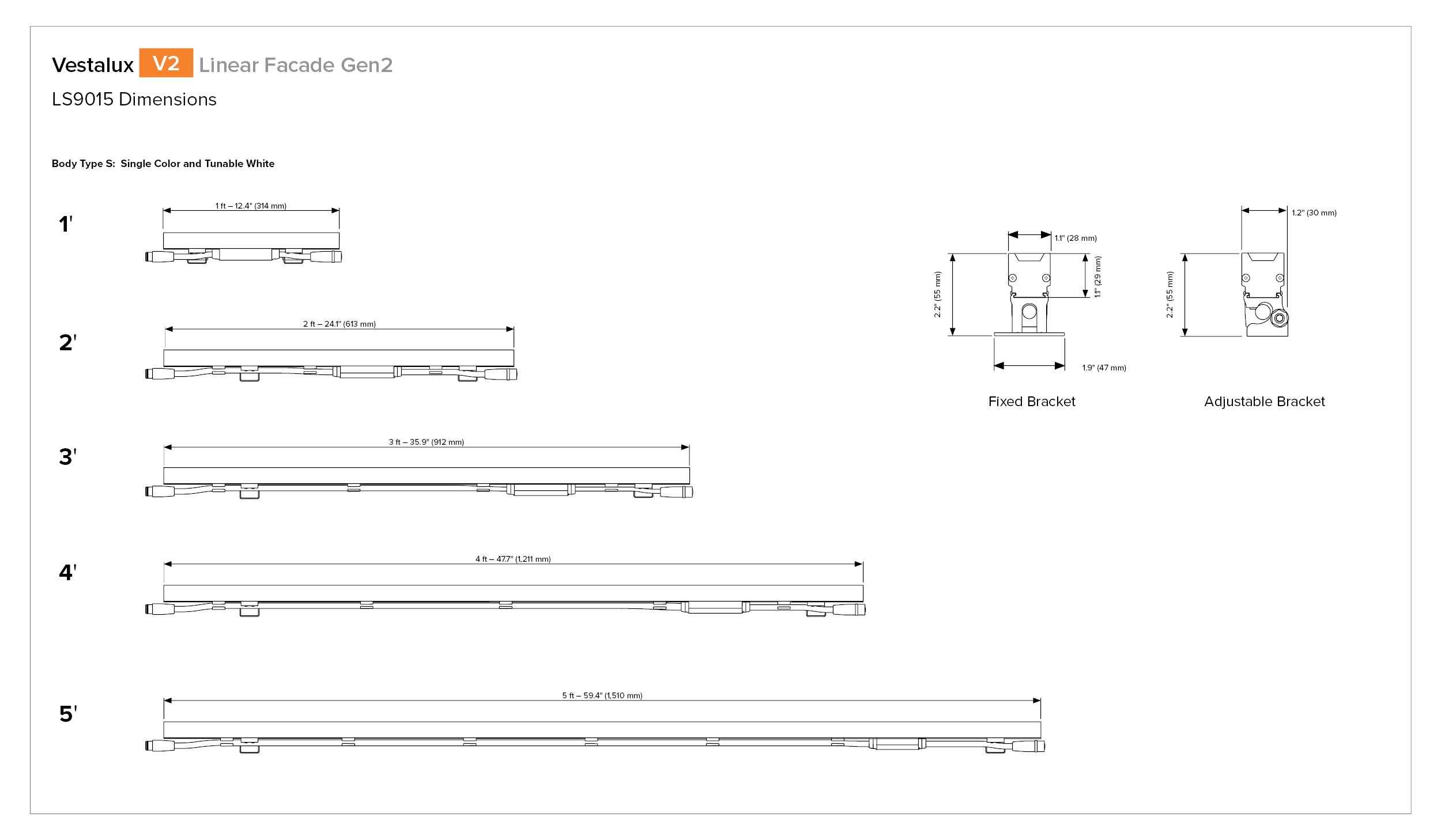

Length
Select the luminaire length
