Linealux L1 Generation 2
Designed to perform, designed to excite and designed to last!
The Vestalux V2 is a high-performance direct view linear outliner featuring Lumascape’s proprietary UVShield™ Technology. UVShield prevents discoloring and degradation of the diffuser, through the unique application of a UV reflective barrier to the already UV-stabilized tube.

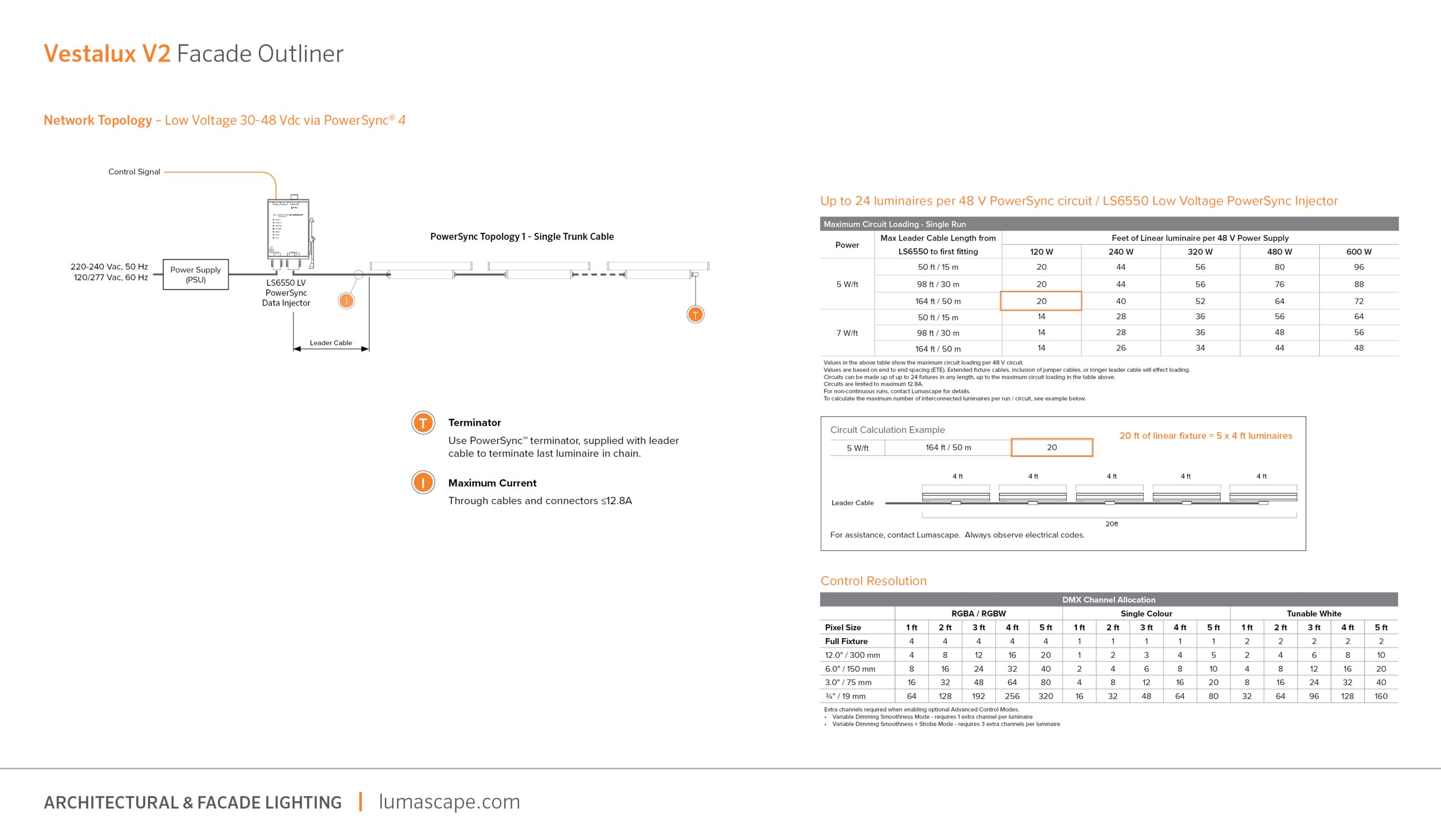

Powered and controlled through Lumascape’s Powersync™4 Technology, up to 225' (69 m) of V2’s can be connected to a single controller and 3 core-leader cable.
Another highlight feature of the V2 is it’s class leading photometric performance. With over 1,200 lm from a 4' RGBW, and almost 2,400 lm from a 4' luminaire in white, the V2 is hard to miss! It is available in a lower, power variant for more subtle applications.
It is also available in 1, 2, 3, 4, and 5 foot lengths, making it easier to fit most linear project requirements.
The Vestalux V2 is perfect for all direct view applications, from subtle single-color outlining and backlighting, to highly dynamic displays of color.
The use of individual discrete LEDs has allowed Lumascape to select mixes of the best mid-power whites and colors available. Choose from a huge range of white color temperatures, or really make your project pop with vibrant saturated colors by selecting our RGBW engine with Royal Blue. For more subtle color choose our RGBA option for stunning pastels, burnt oranges and magnificent mixed whites.
The Vestalux V2 packages technology, incredible control and perfect color blending into a compact and robust direct view package.
With a Vestalux V2 on your project, imagination is the only limit!
|Control - Low Voltage 30-48 Vdc|
|LS6550||PowerSync Data Injector, Low Voltage, Generation 2 (Required for PS installations only)|
|LSLED40W-48V||DC Power Supply, 48 V, 40 W|
|LSLED80W-48V||DC Power Supply, 48 V, 80W|
|LSLED120W-48V||DC Power Supply, 48 V, 120 W|
|LSLED240W-48V||DC Power Supply, 48 V, 240 W|
|LSLED320W-48V||DC Power Supply, 48 V, 320 W|
|LSLED480W-48V||DC Power Supply, 48 V, 480 W|
|LSLED600W-48V||DC Power Supply, 48 V, 600 W|
|Wiring - Low Voltage 30-48 Vdc|
|LS6426-PS||Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync|
|LS6427-PS||Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync|
|LS6426-ND||Leader Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync|
|LS6427-ND||Jumper Cable, Low Voltage 30-48 Vdc, 3-Core, PowerSync|
|Control - Line Voltage 220-240 Vac|
|LS6540||PowerSync Data Injector, Line Voltage, Generation 2 (Required for PS installations only)|
|Wiring - Line Voltage 220-240 Vac|
|LS6402C-PS||Leader Cable, Line Voltage, 4-Core, PowerSync|
|LS6402C-2.5-PS||Leader Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm²|
|LS6404C-PS||Jumper Cable, Line Voltage, 4-Core, PowerSync|
|LS6404C-2.5-PS||Jumper Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm²|
