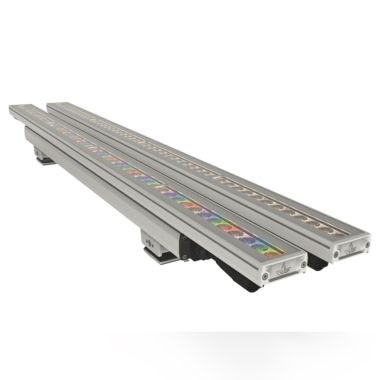

Linealux L1 Generation 2
Product Overview
The Linealux L5 is a high-powered architectural grade luminaire that combines technology and performance in a stylish linear form factor. Packed with features including EasyGlow™ visual comfort and CoolDrive™ thermal management technologies. PowerSync™ allows for highly granular digital control via common protocols. Unique and flexible optics allow wide end-to-end spacing whilst maintaining excellent uniformity. Designer lens options are offered as standard to provide superb color-over-angle consistency and blending of colors even at close blending distances. Available in white, color-changing and tunable white light engines.
Features
Lumen Output 2,163 lm/ft
Power Consumption 19 W/ft, 23 W/ft
Typical Lifetime (TM21 Reported) > 60,000 hours @ 50°C Ambient (B10, L90, TM21 Reported)
Typical Lifetime (TM21 Projected) 71,575 hours @ 50°C Ambient (B10, L90, TM21 Projected)
Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz
Earth Leakage 0.2 mA @ 120 Vac, 0.42 mA @ 240 Vac, 0.24 mA @ 277
Control Interface PowerSync
Control Protocol DMX/RDM, Artnet, PWM, 0-10 V (Sink or Source)
IP Rating IP66 / IP67 (Passes IP68 Test)
IK Rating IK6
Vibration Resistance 3G Rating (ANSI 136.31)
Compliance
Color Options
Data Sheet
Color Options
Data Sheet
Specifications
Accessories
| Control | ||
| LS6540 | PowerSync Data Injector, Line Voltage, Generation 2 | |
| Wiring | ||
| LS6402C-PS | Leader Cable, Line Voltage, 4-Core, PowerSync | |
| LS6402C-2.5-PS | Leader Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm² | |
| LS6404C-PS | Jumper Cable, Line Voltage, 4-Core, PowerSync | |
| LS6404C-2.5-PS | Jumper Cable, Line Voltage, 4-Core, PowerSync, 2.5 mm² | |
| Glare Control | ||
| LS6209 | External / Slatted Louver- 1' | |
| LS6210 | External / Slatted Louver- 2' | |
| LS6211 | External / Slatted Louver- 3' | |
| LS6212 | External / Slatted Louver- 4' | |
| LS6213 | External Shield / Visor 1-sided - 1' | |
| LS6214 | External Shield / Visor 1-sided - 2' | |
| LS6215 | External Shield / Visor 1-sided - 3' | |
| LS6216 | External Shield / Visor 1-sided - 4' | |
| LS6217 | External Shield / Visor 3-sided - 1' | |
| LS6218 | External Shield / Visor 3-sided - 2' | |
| LS6219 | External Shield / Visor 3-sided - 3' | |
| LS6220 | External Shield / Visor 3-sided - 4' | |
| Mounting | ||
| LS6147 | Link Key | |
| LS6221-06 | 6" (152 mm) Stand Off Bracket | |
| LS6221-12 | 12" (305 mm) Stand Off Bracket | |
| LS6221-18 | 18" (47 mm) Stand-Off Bracket | |
| LS6221-24 | 24" (610 mm) Stand-Off Bracket | |
| LS6221-48 | 48" (1,219 mm) Stand-Off Bracket | |
Product Configurator
Length
Select the luminaire length
