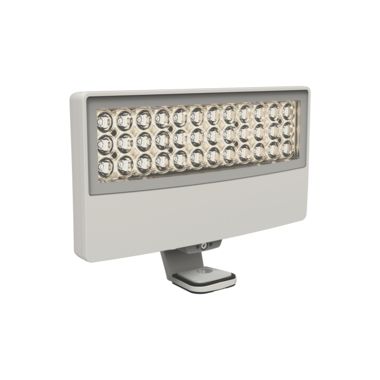

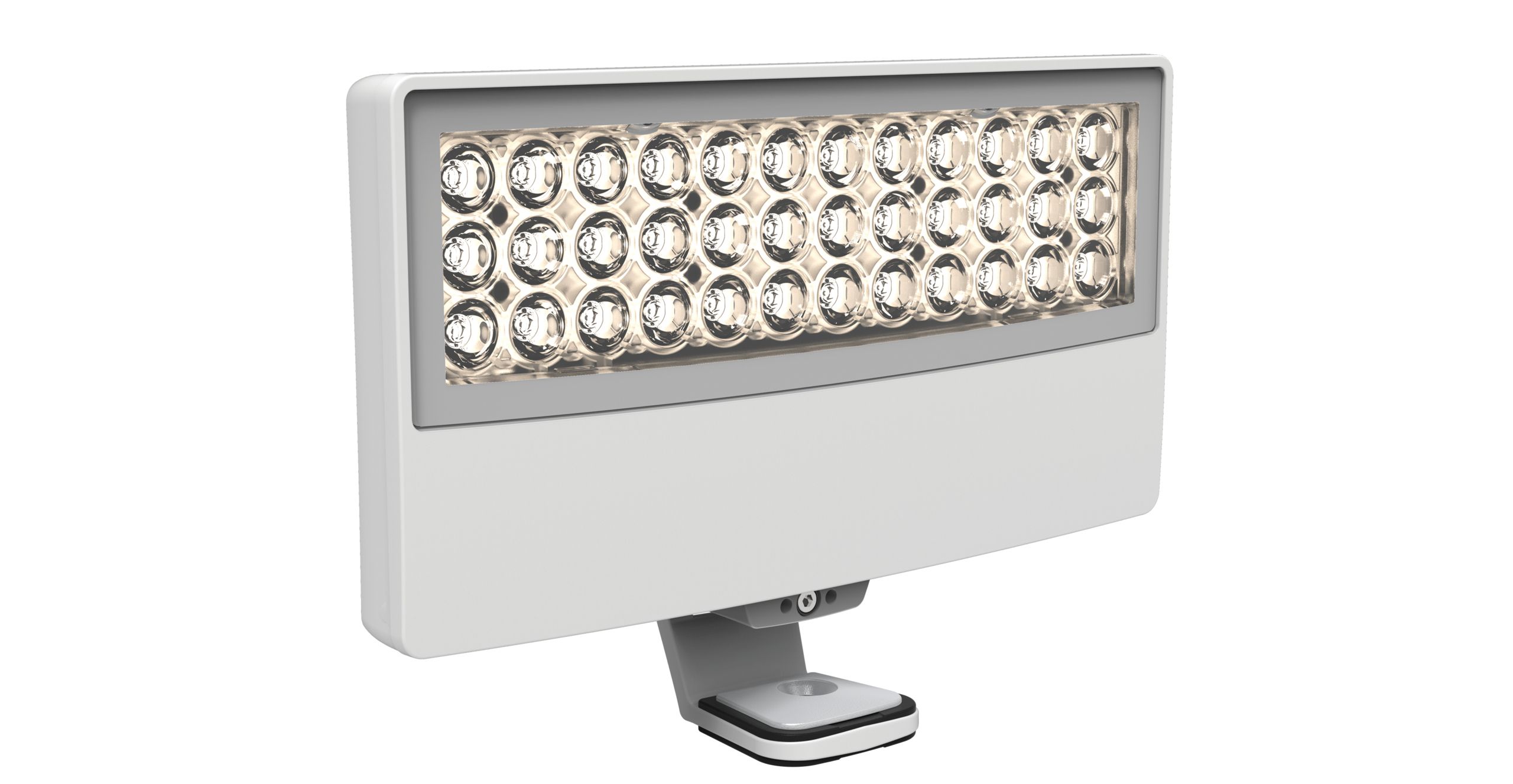

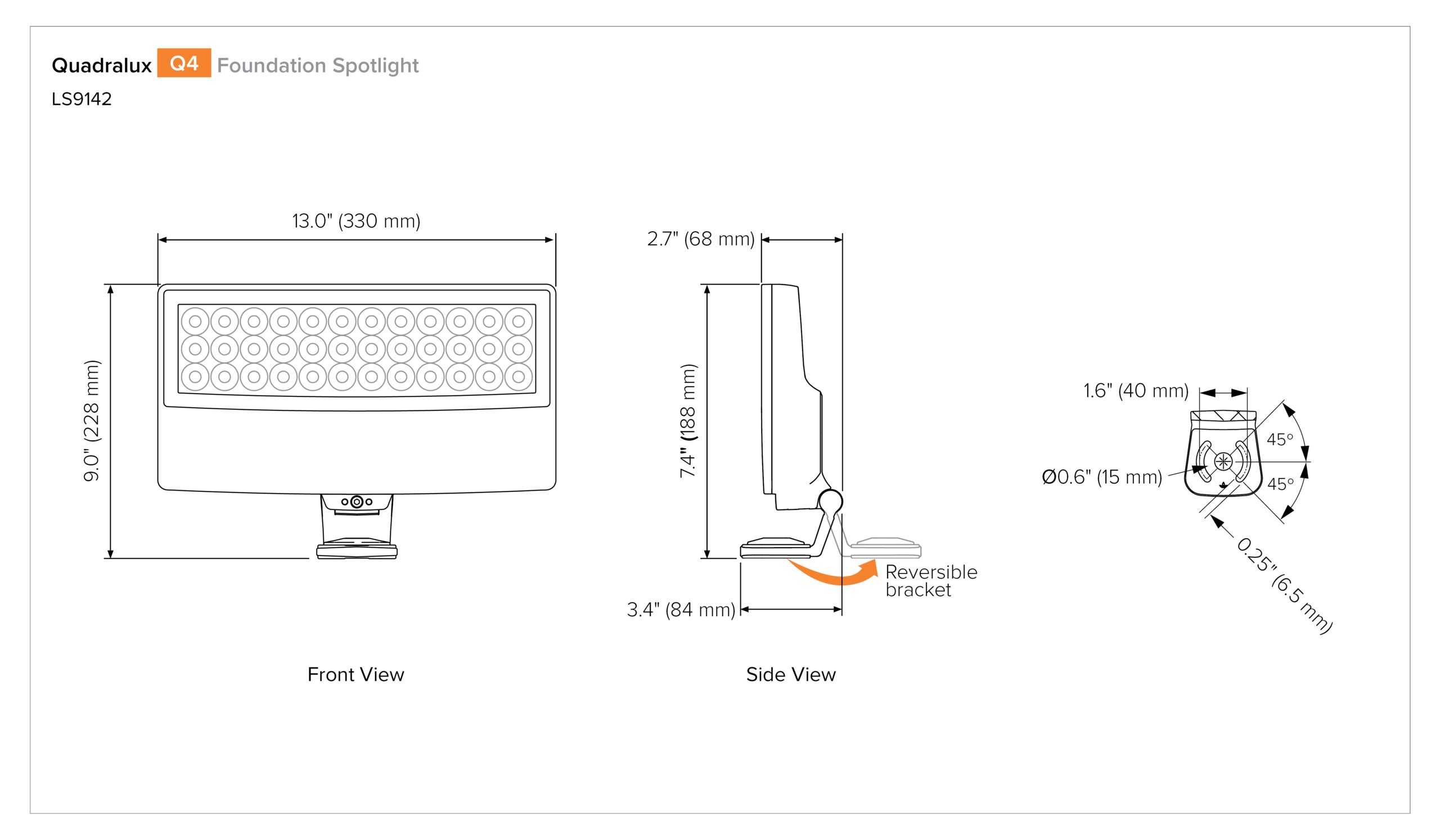

Quadralux Q4 Foundation - LS9142

A medium architectural-grade spotlight that combines technology and performance in a modern form factor.
Configure this product Features Specifications Videos Accessories

Product Overview

Packed with features including EasyGlow™ visual comfort, and CoolDrive™ thermal management technologies. Unique and flexible mounting with glare control accessories enable installation in multiple orientations. Designer optics, provide superb color-over-angle consistency and color blending even at close distances. Available with DALI or non-dimmable configurations.

Features

Lumen Output 5,380 lm Power Consumption 48W Typical Lifetime (TM21 Reported) > 60,000 hours @ 40°C Ambient (B10, L90, TM21 Reported) Typical Lifetime (TM21 Projected) 179,506 hours @ 40°C Ambient (B10, L90, TM21 Projected) Input Voltage International: 220-240 Vac, 50 Hz | North America: 120/277 Vac, 60 Hz Control Protocol DALI® 2 (International), 0-10 V (North America), Non-Dimmable IP Rating IP66/IP67 (Passes IP68 Test) IK Rating IK8 Vibration Resistance 3G Rating (ANSI C136.31) Compliance ETL - USA & Canada CE UKCA RCM FCC Color Options Warm White Cool White Data Sheet

Specifications

Videos
Webinar | Foundation Family
Watch the webinar introducing Lumascape's Foundation range of enhanced lighting controls

Accessories


Glare Control
LS6206 Cross Hatch Louver
LS6207 45° Visor
LS6208 Custom Visor
LS6205 Accessory Holder

Mounting
LS6301 4.0"  (106 mm)  Junction Box Adaptor / Surface Mounting Kit
LS6302 3.0"  (76 mm)  Pole Clamp
LS6303 4.0"  (102 mm)  Pole Clamp
LS6304 4.5"  (114 mm)  Pole Clamp
LS6305 5.0"  (127 mm)  Pole Clamp
LS6306 2 3/8" x 4.0"  (60 mm x 104 mm)  Tenon Adaptor
LS6307 3.5" x 6.0"  (89 mm x 147 mm)  Tenon Adaptor
LS6221-06 6" (152 mm) Stand-Off Bracket
LS6221-12 12" (305 mm) Stand-Off Bracket
LS6221-18 18" (47 mm) Stand-Off Bracket

Downloads

Data Sheet Install Guide
IES Files LS9142 DALI ZIP (801.08 KB) DXF Files LS9142 ZIP (475.34 KB) Product Flyer Q2 & Q4 PDF (148.97 KB) Product Brochure Foundation Family PDF (569.09 KB)

Technology

Product Configurator

LS9142 _ _ _ _ _ _ _ _
Login to view pricing
Reset to Default Clear Selected Add

Customise Quadralux Q4 Foundation below

Power Consumption

For all non-dimming or DALI controlled luminaires

Required

48 W (48D)

Light Source

Required

Static White (827)

Static White (827)

2,700 K (80 CRI, 3 SDCM)

Static White (830)

Static White (830)

3,000 K (80 CRI, 3 SDCM)

Static White (835)

Static White (835)

3,500K (80 CRI, 3 SDCM)

Static White (840)

Static White (840)

4,000 K (80 CRI, 3 SDCM)

Static White (750)

Static White (750)

5,000 K (70 CRI, 3 SDCM)

Connection Type

Required

Single entry (84)

Single entry (84)

For connection to the supply circuit via flexible cable, up to 1.8m (6ft) in length. Single entry.

Beam Angles

Published angles may vary slightly to photometric data. Please refer to IES files where relevant.

Required

Very Narrow (VN)

Very Narrow (VN)

6°

Narrow (NR)

Narrow (NR)

10°

Narrow Medium (NM)

Narrow Medium (NM)

15°

Medium (ME)

Medium (ME)

30°

Wide (WD)

Wide (WD)

45°

Wide Flood (WF)

Wide Flood (WF)

65°

Narrow Horizontal (NH)

Narrow Horizontal (NH)

10º x 40º

Linear Horizontal (LH)

Linear Horizontal (LH)

10º x 60º

Linear Vertical (LV)

Linear Vertical (LV)

60° x 10°

Narrow Vertical (NV)

Narrow Vertical (NV)

40° x 10°

Medium Horizontal (MH)

Medium Horizontal (MH)

20º x 40º

Medium Vertical (MV)

Medium Vertical (MV)

40° x 20°

Wide Horizontal (WH)

Wide Horizontal (WH)

20º x 60º

Wide Vertical (WV)

Wide Vertical (WV)

60° x 20°

Input Voltage

Required

220 to 240 Vac, 50 Hz (01)

220 to 240 Vac, 50 Hz (01)

Line Voltage

Control

Required

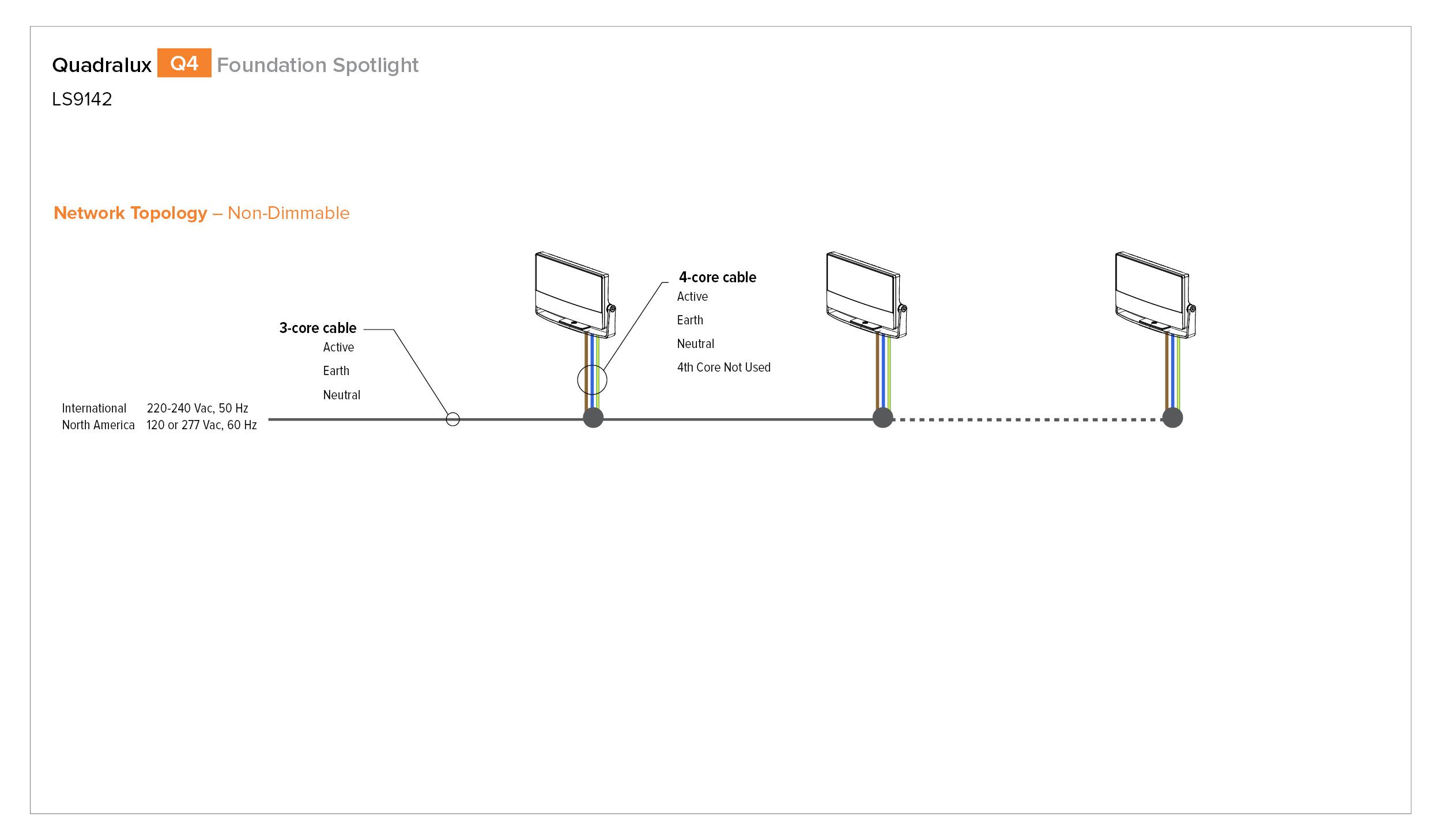

Non-Dimmable (ND)

For single color, non-dimming applications only.

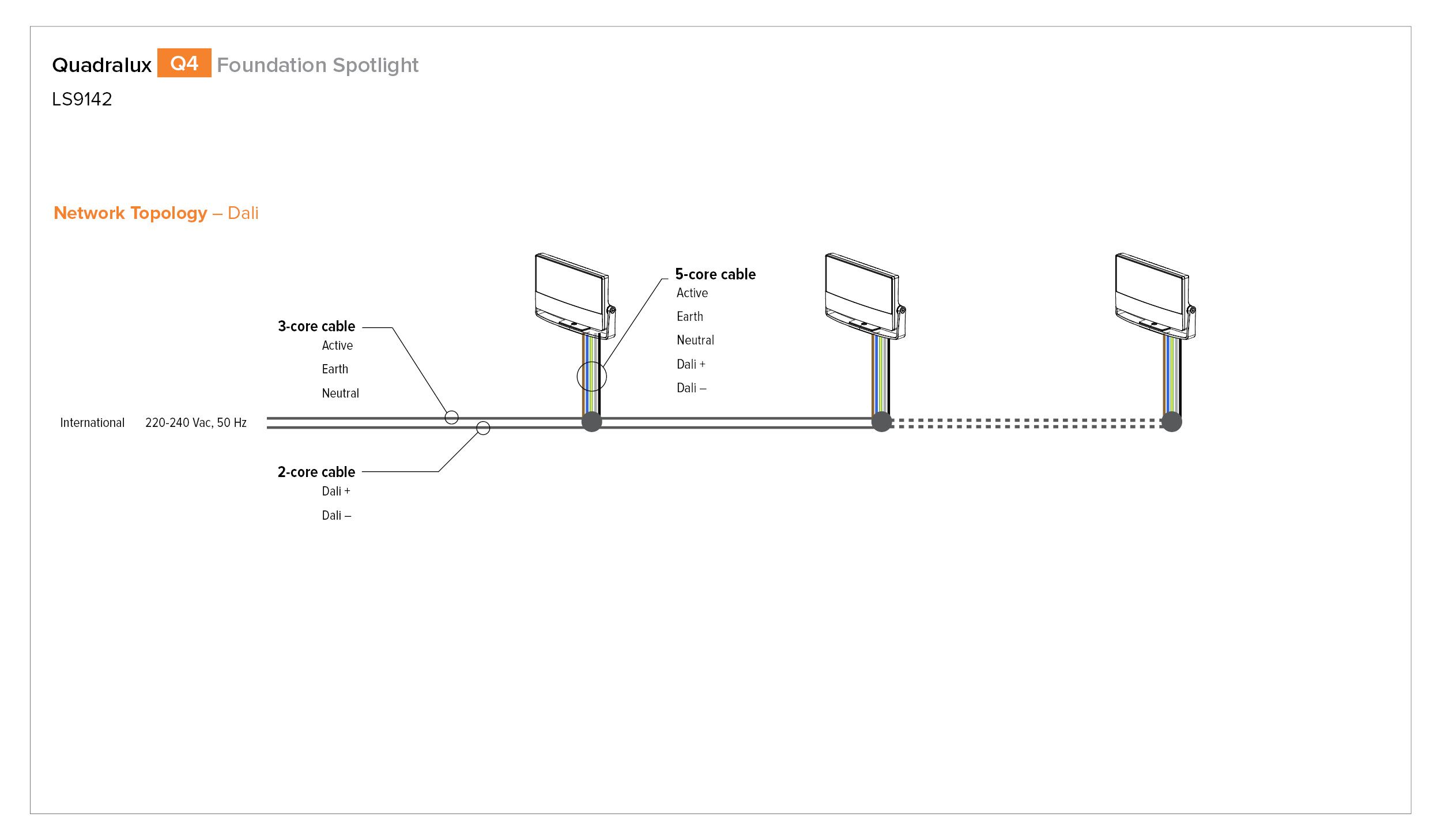

DALI (DL)

Finish

Custom powder coat colours are available. Please consult factory.

Required

Black (BL)

Black (BL)

RAL9004 from RAL Classic collection (formerly CB)

More info
Anthracite Gray (AG)

Anthracite Gray (AG)

RAL7016 from RAL Classic collection

More info
Basalt Gray (BT)

Basalt Gray (BT)

RAL7012 from RAL Classic collection

More info
Graphite Gray (GH)

Graphite Gray (GH)

Graphite Gray

More info
Anodic Silver (SL)

Anodic Silver (SL)

RAL9006 from RAL Classic collection (formerly CS)

More info
White (WT)

White (WT)

RAL9016 from RAL Classic collection

More info
Dark Bronze (DB)

Dark Bronze (DB)

RAL8019 from RAL Classic collection

More info
Latte (LT)

Latte (LT)

RAL7006 from RAL Classic collection

More info
Dark Aluminium (DA)

Dark Aluminium (DA)

RAL9007 from RAL Classic collection

More info
Custom RAL (CC)

Custom RAL (CC)

A one-off custom color setup fee applies. Click on 'More Info' button to add to your enquiry. Contact Lumascape for volume discount on set-up fee.

More info

Cable Length

For custom cable lengths contact Lumascape. Cable cannot be field installed.

Required

6 ft (1.8 m) (006)

Accessories

Accessory Holder

Order to match luminaire powder coat color.

Accessory Holder

Accessory Holder (LS6205)

Required for the attachment of shielding and glare control accessories.

More info

Louvers

Provides additional glare control. Available in black only.

Cross Hatch Louver

Cross Hatch Louver (LS6206)

For shielding and glare control. Accessory Holder (LS6201) is required.

More info

Shielding

Provides additional beam control and shielding. Custom visors available on request.

Visor Accessory

Visor Accessory (LS6207)

For shielding and glare control. Accessory Holder (LS6205) is required.

More info

Mounting & Installation

Provides an easy method of installing the luminaire.

Surface Mounting Kit

Surface Mounting Kit (LS6301)

4.2" (106 mm) Junction Box Adaptor

More info
Tenon Adaptor

Tenon Adaptor (LS6306)

Pole mounting accessory 2⅜" x 4.0" (60 mm x 104 mm)

More info
Tenon Adaptor

Tenon Adaptor (LS6307)

Pole mounting accessory 3.5" x 6.0" (89 mm x 147 mm).

More info
3" Pole Clamp

3" Pole Clamp (LS6302)

Pole clamp mounting accessory 3.0" (76 mm).

More info
4" Pole Clamp

4" Pole Clamp (LS6303)

Pole clamp mounting accessory 4.0" (102 mm).

More info
4.5" Pole Clamp

4.5" Pole Clamp (LS6304)

Pole clamp mounting accessory 4.5" (114 mm)

More info
5" Pole Clamp

5" Pole Clamp (LS6305)

Pole clamp mounting accessory 5" (127 mm).

More info
Stand Off Bracket

Stand Off Bracket (LS6221)

Allows the luminaire to be installed off the facade.

More info

Custom Color

A one-off setup fee applies for each custom color per order. Add to your enquiry.

Custom Color Setup Fee

Custom Color Setup Fee (Custom RAL Color)

Custom RAL colour setup fee

More info
