Luminaire Control
PowerSync™ Data Injector Generation 2
Product Overview

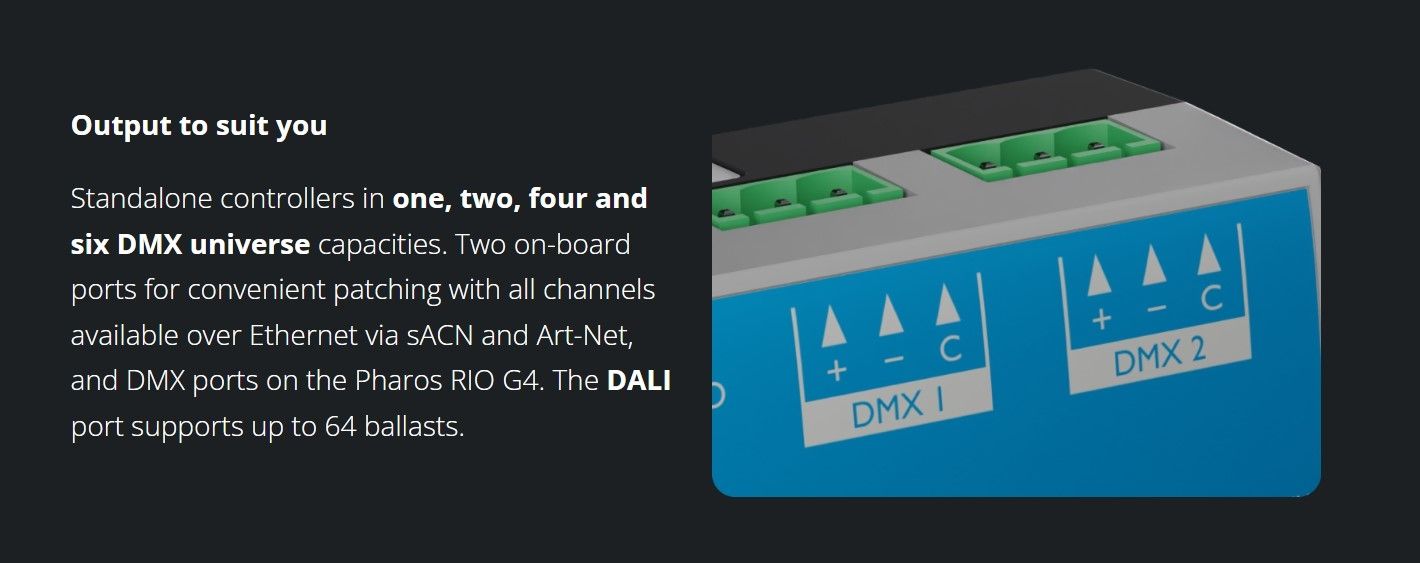

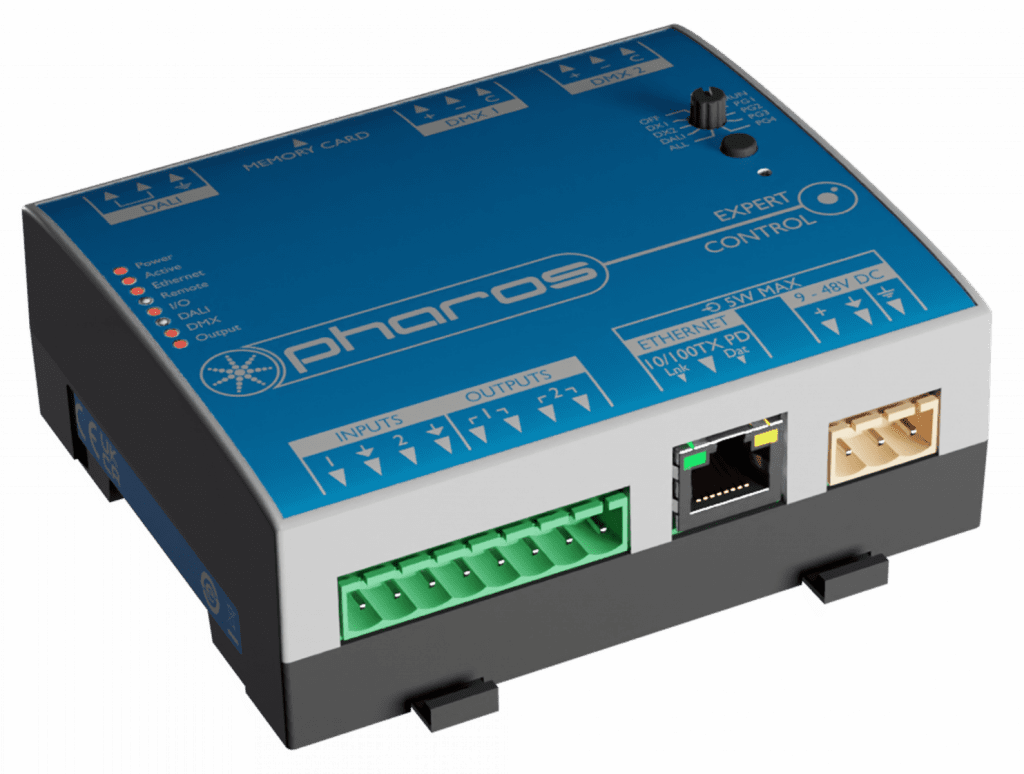

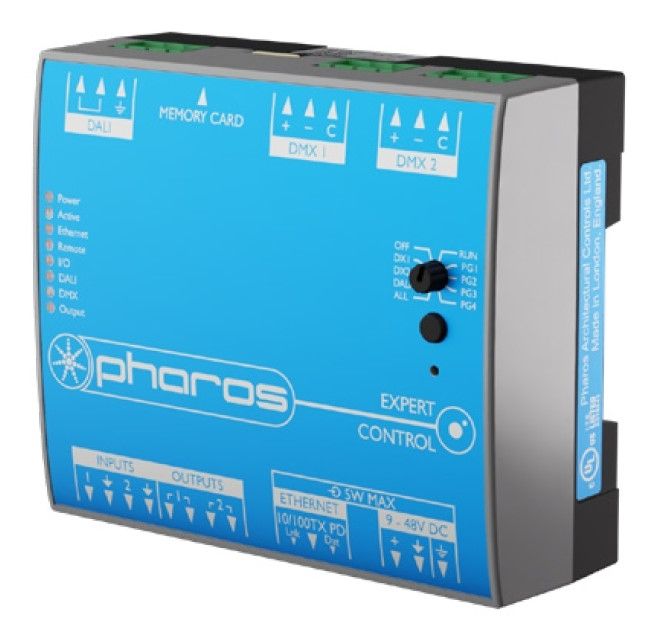

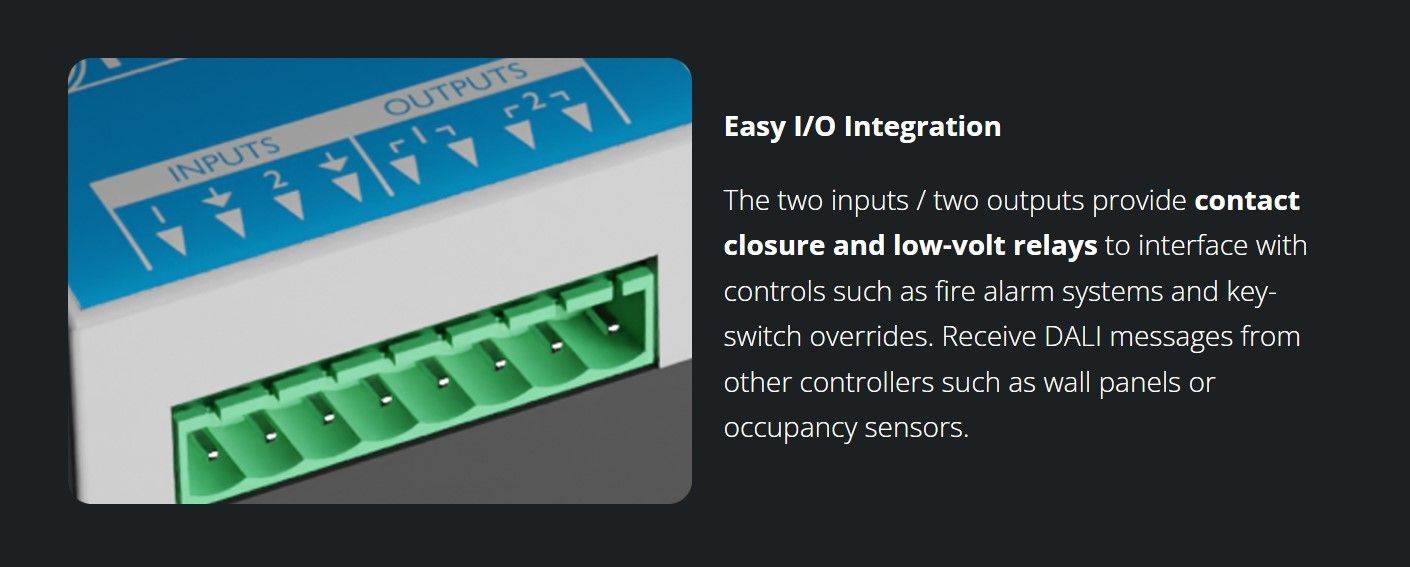

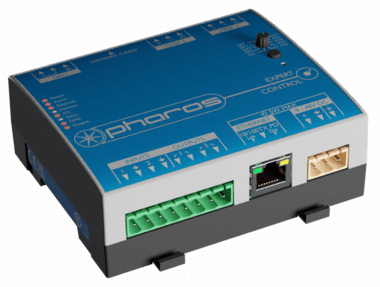

Compact DIN rail enclosure with solid-state hardware for 24/7 operation and reliability. Up to 3072 channels of eDMX, two local DMX ports. DALI and I/O onboard. Simple networking for programming.

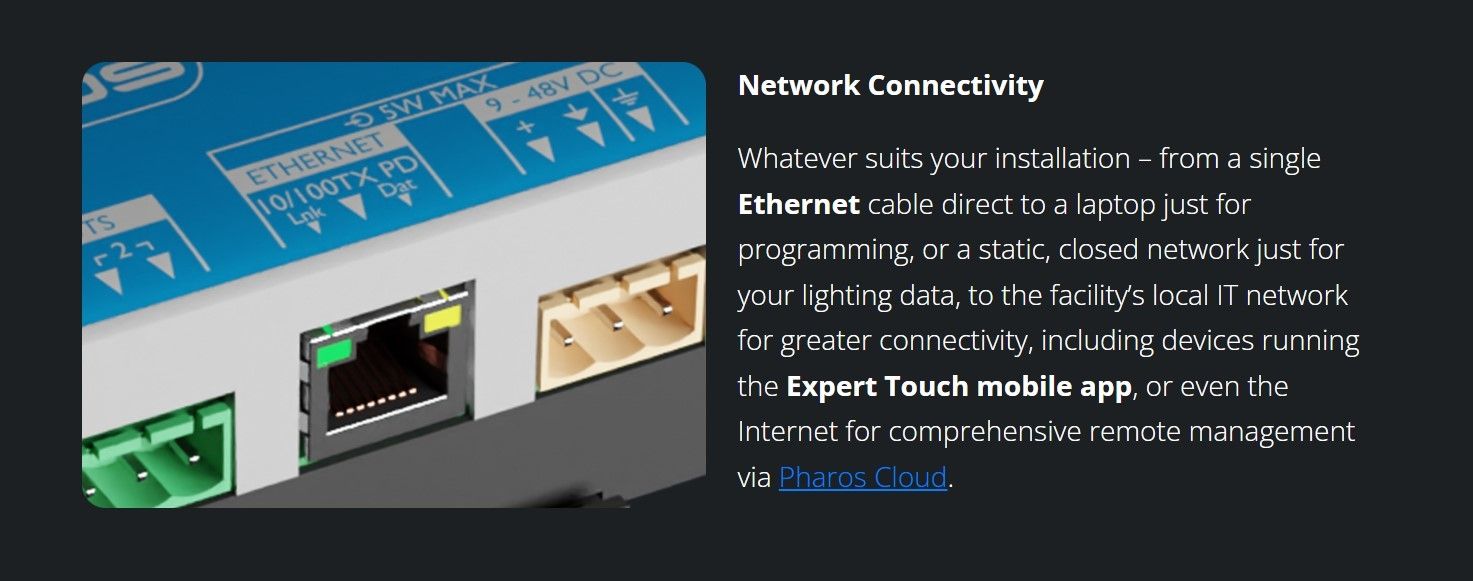

Benefit from Pharos expertise in dynamic architectural lighting with Pharos Expert, the award-winning, cost-effective control solution centred around a single, reliable, set-and-forget controller that’s easy to specify and install. The software is the expert, offering curated options for lighting control, scheduling and integration features.
Features

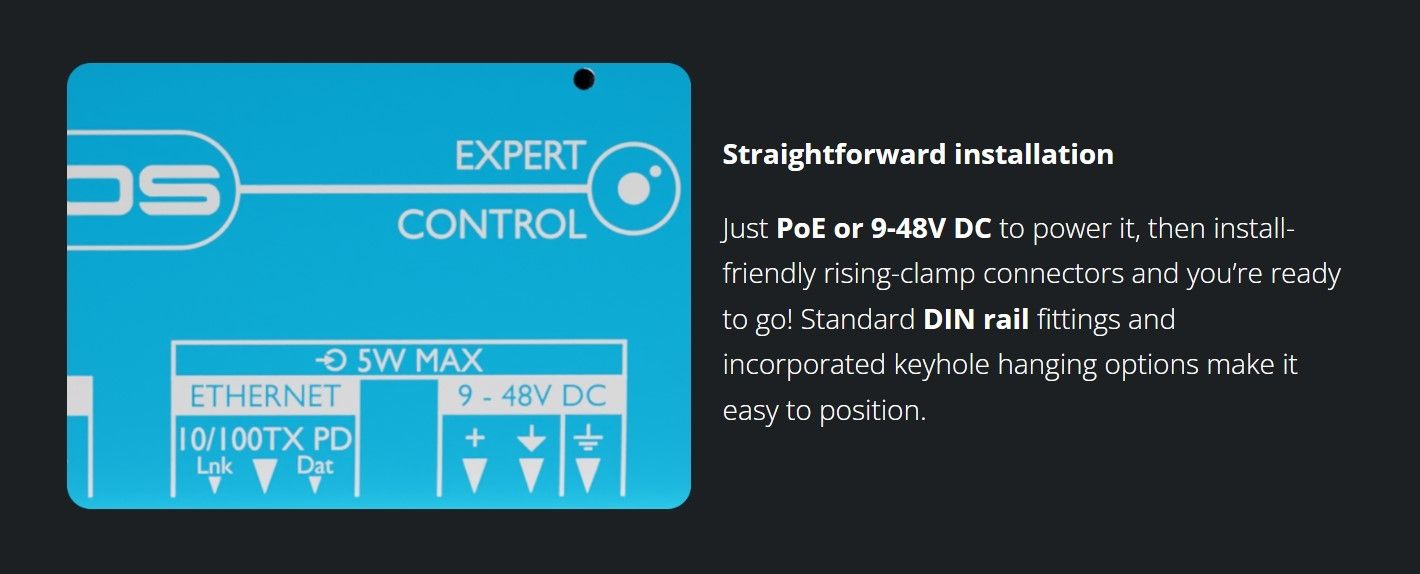

Power 9-48V DC or PoE (IEEE802.3af, Class 2) 4W typical
Temperature 0°C to 50°C (32°F to 122°F)
Humidity 10-90% relative, non-condensing
Ingress IP40
Physical 6 unit wide DIN rail mounting enclosure (35/7.5 rail)

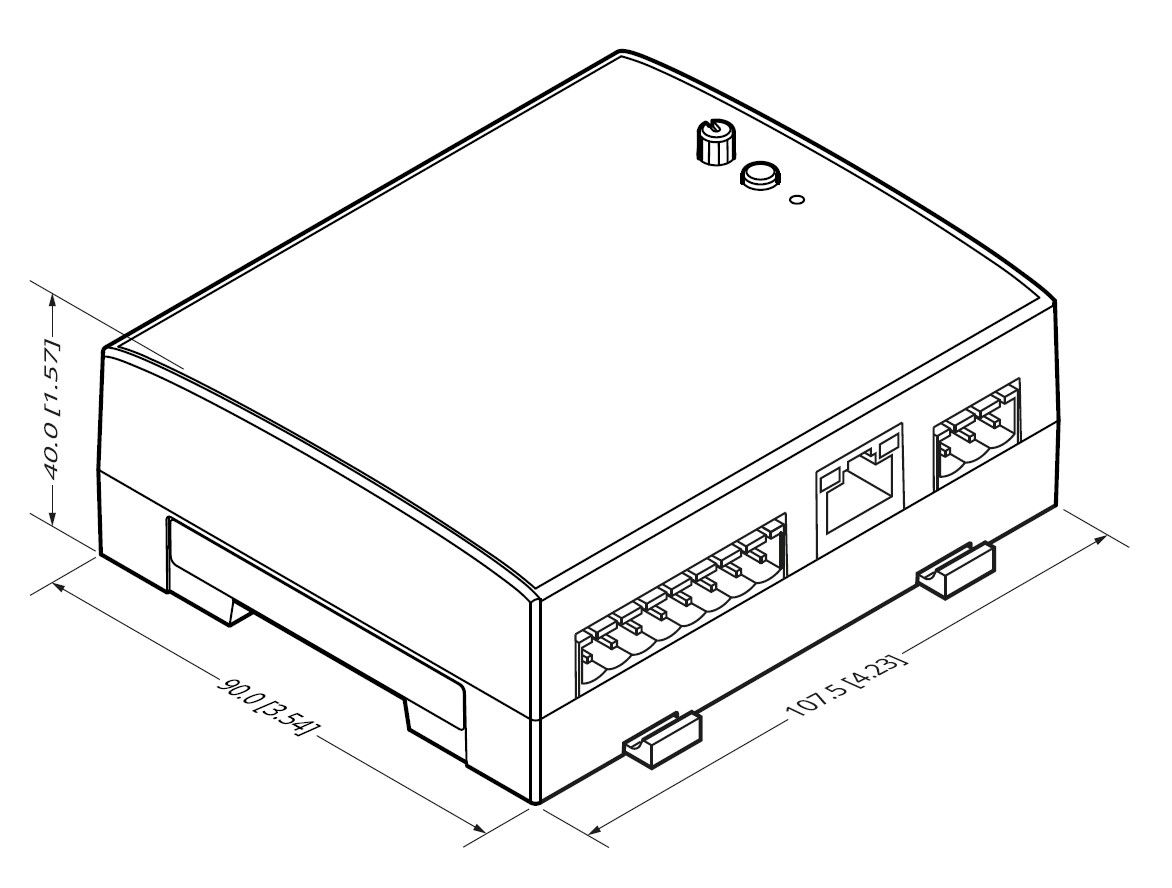

Dimensions 10.8 x 9 x 4 cm (4.2 x 3.5 x 1.6 in)
Weight 0.2 kg (0.5 lbs)
Compliance
