Product Overview

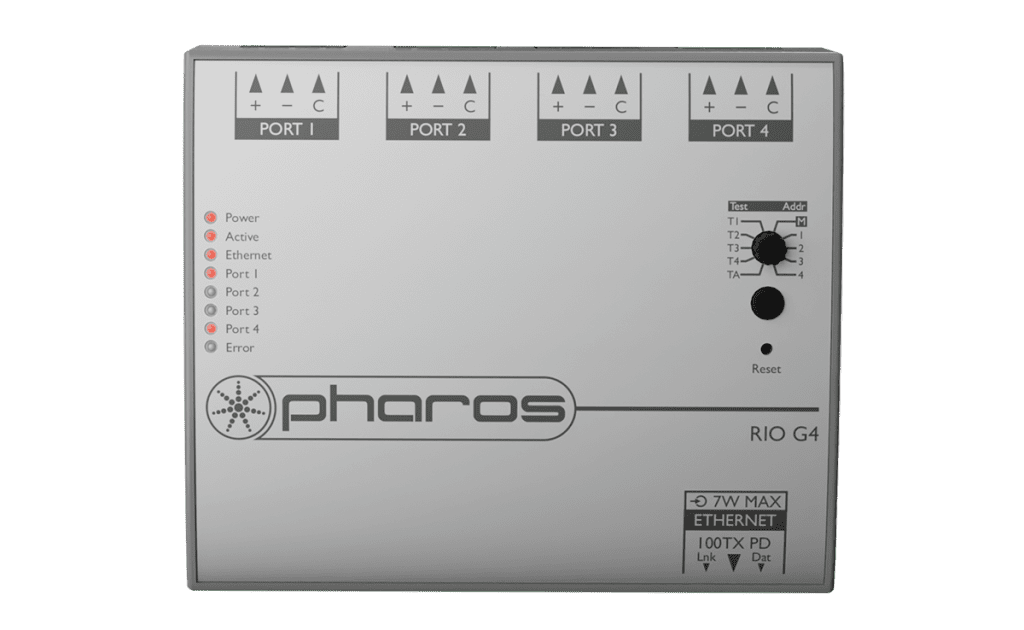

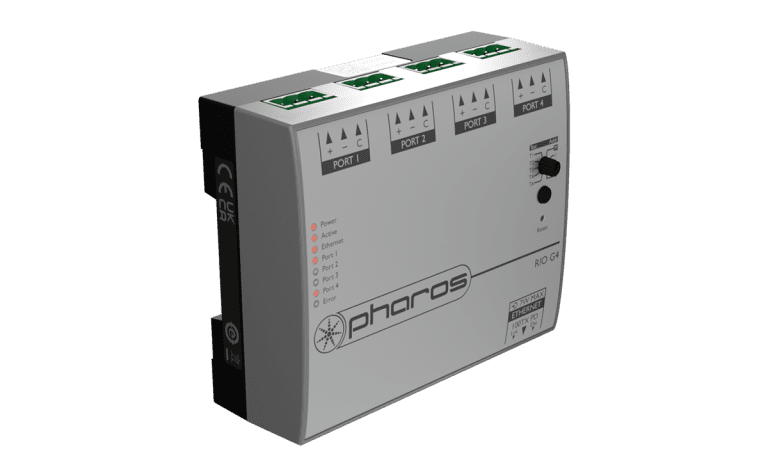

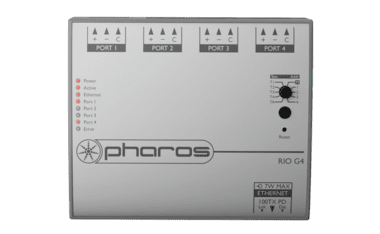

The Pharos RIO G4 (Remote Gateway 4-Port) is a convenient and scalable solution, providing cost-effective Ethernet-distributed DMX ports.

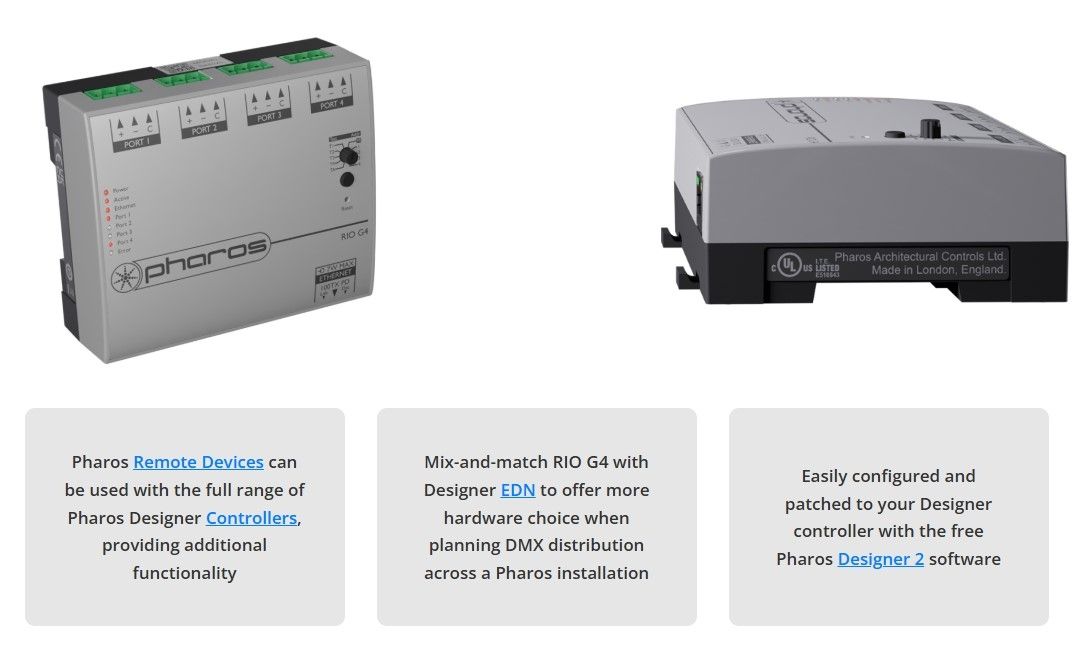

The RIO G4 is an easily configurable networking node that is specifically designed to add physical DMX ports to Pharos controllers and integrates natively with the full Pharos Designer range. Have the reassurance of using Pharos hardware all the way to the fixture.

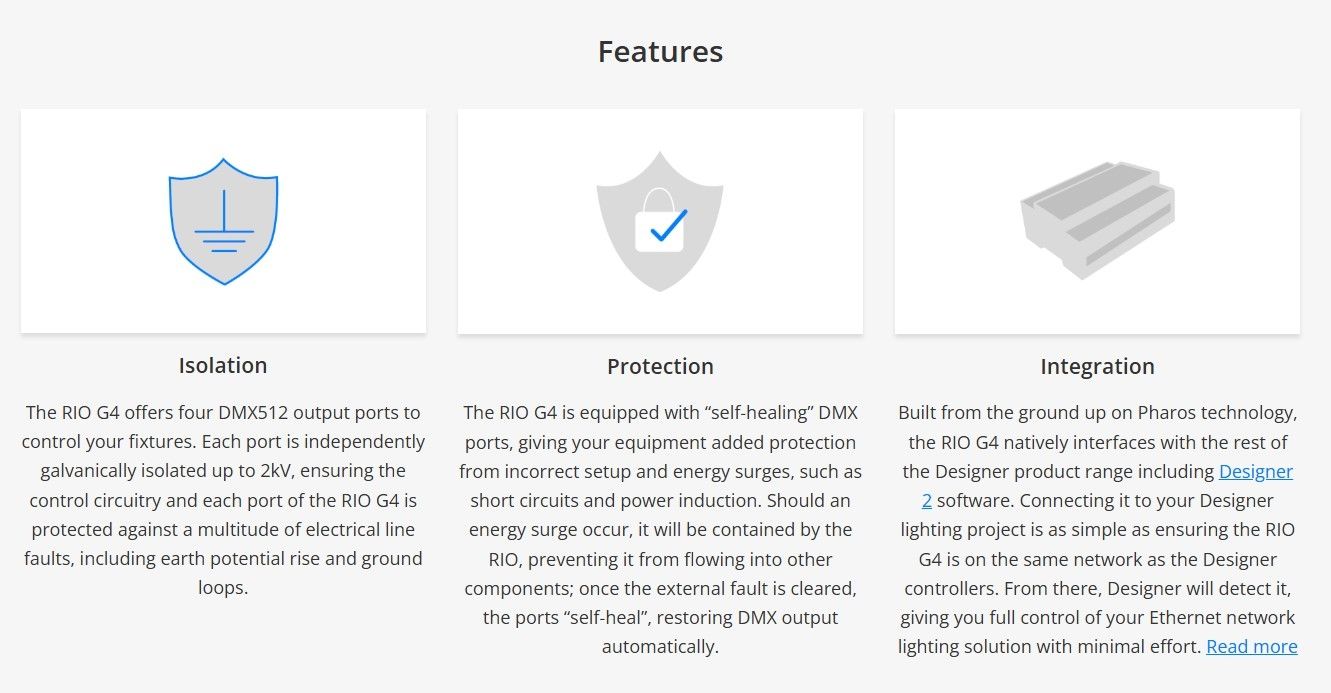

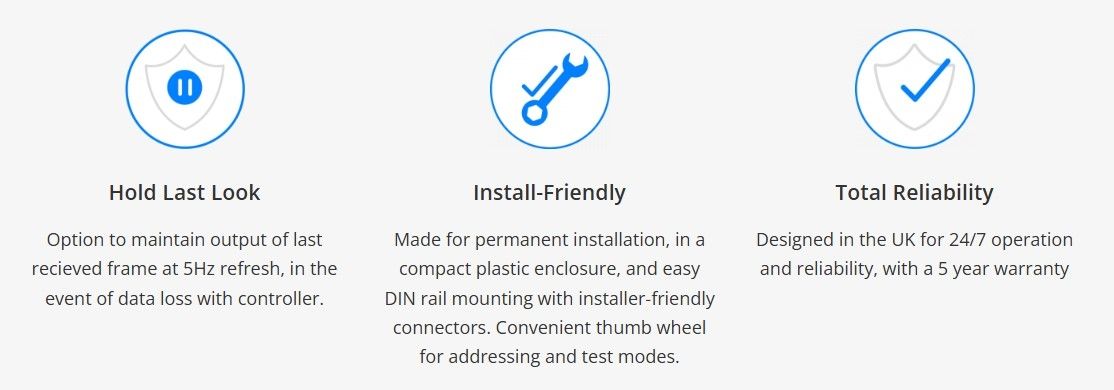

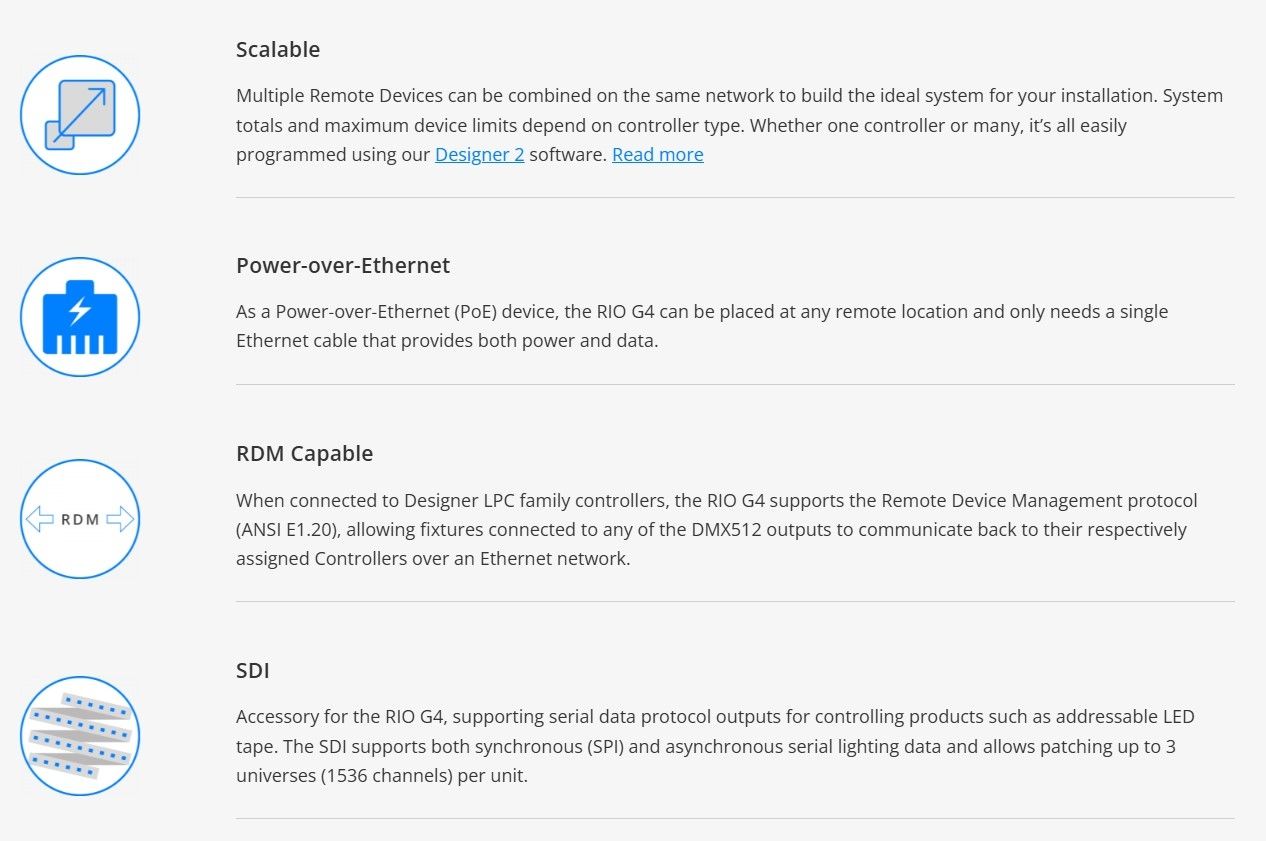

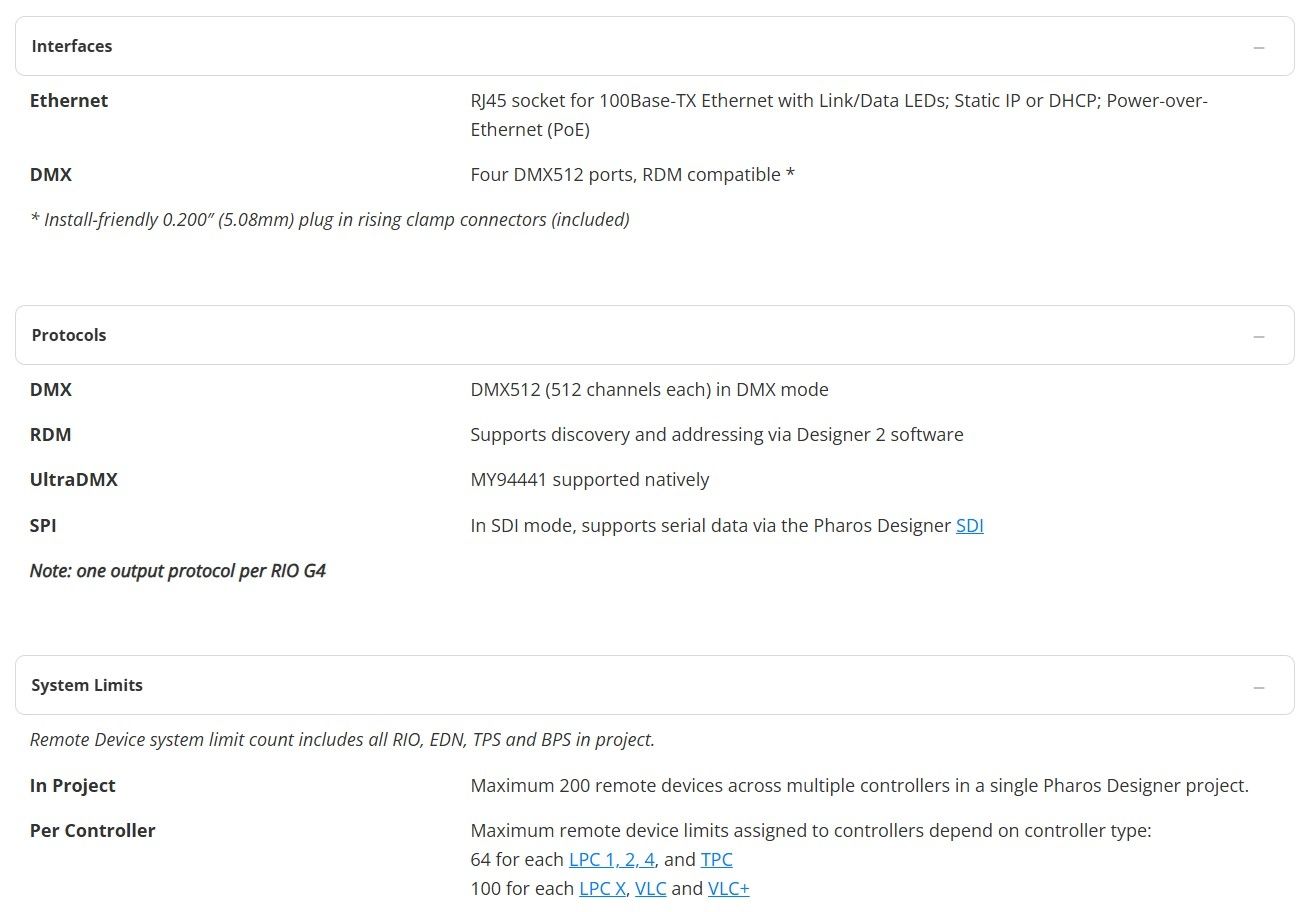

Features

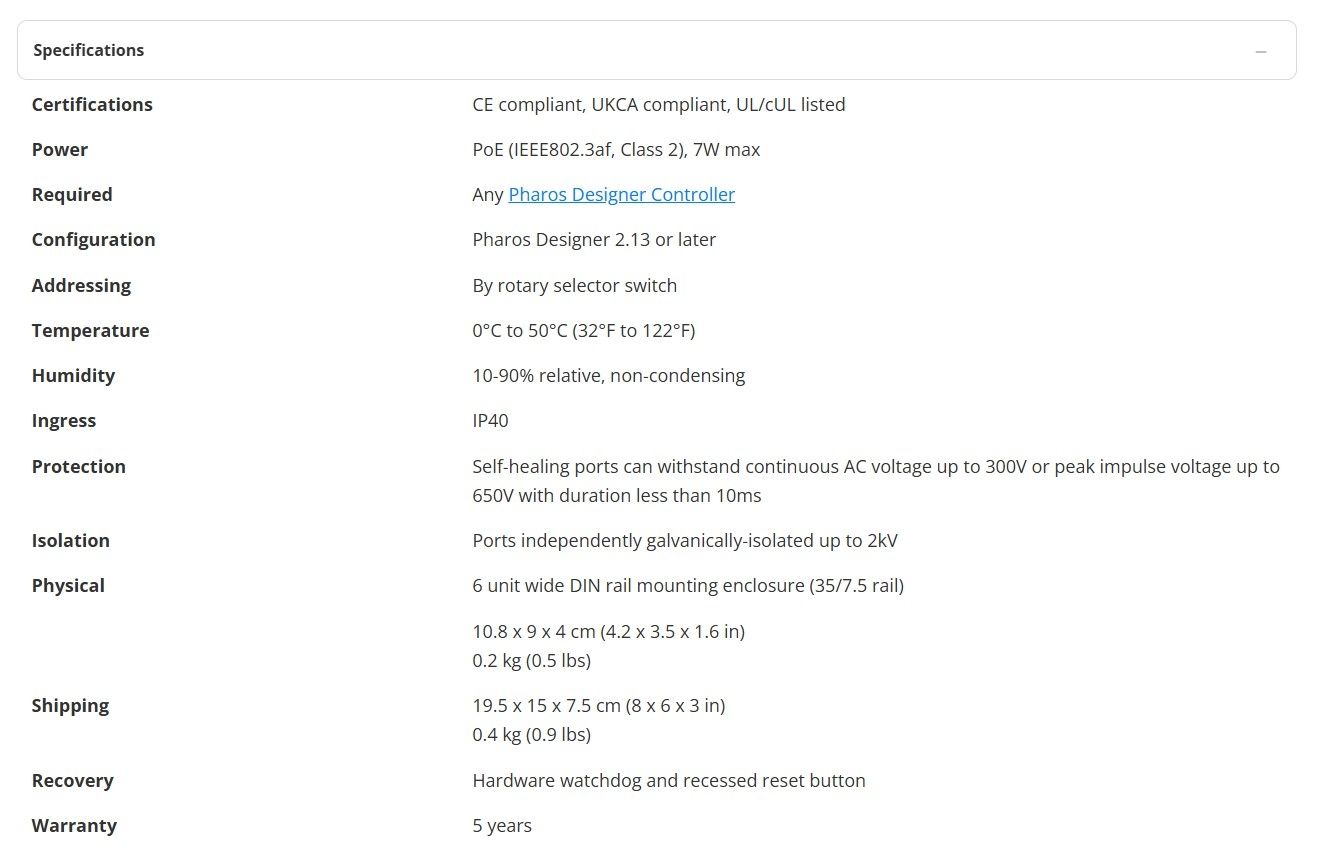

Power PoE (IEEE802.3af, Class 2), 7W max
Temperature 0°C to 50°C (32°F to 122°F)
Humidity 10-90% relative, non-condensing
Ingress IP40
Physical 6 unit wide DIN rail mounting enclosure (35/7.5 rail)
Dimensions 10.8 x 9 x 4 cm (4.2 x 3.5 x 1.6 in)
Weight 0.2 kg (0.5 lbs)
