  • Pharos Designer LPC X Lighting Playback Controller

Pharos Designer LPC X Lighting Playback Controller - LPC X S3

PRICE ON APPLICATION
Configure this product Features Specifications

Product Overview

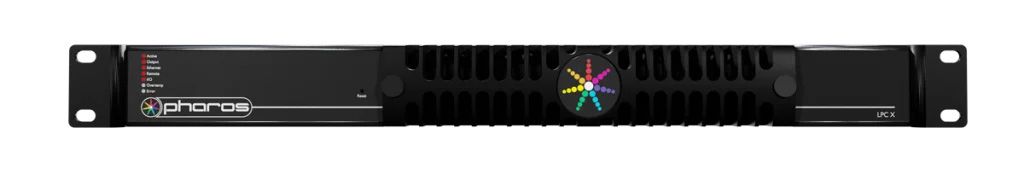

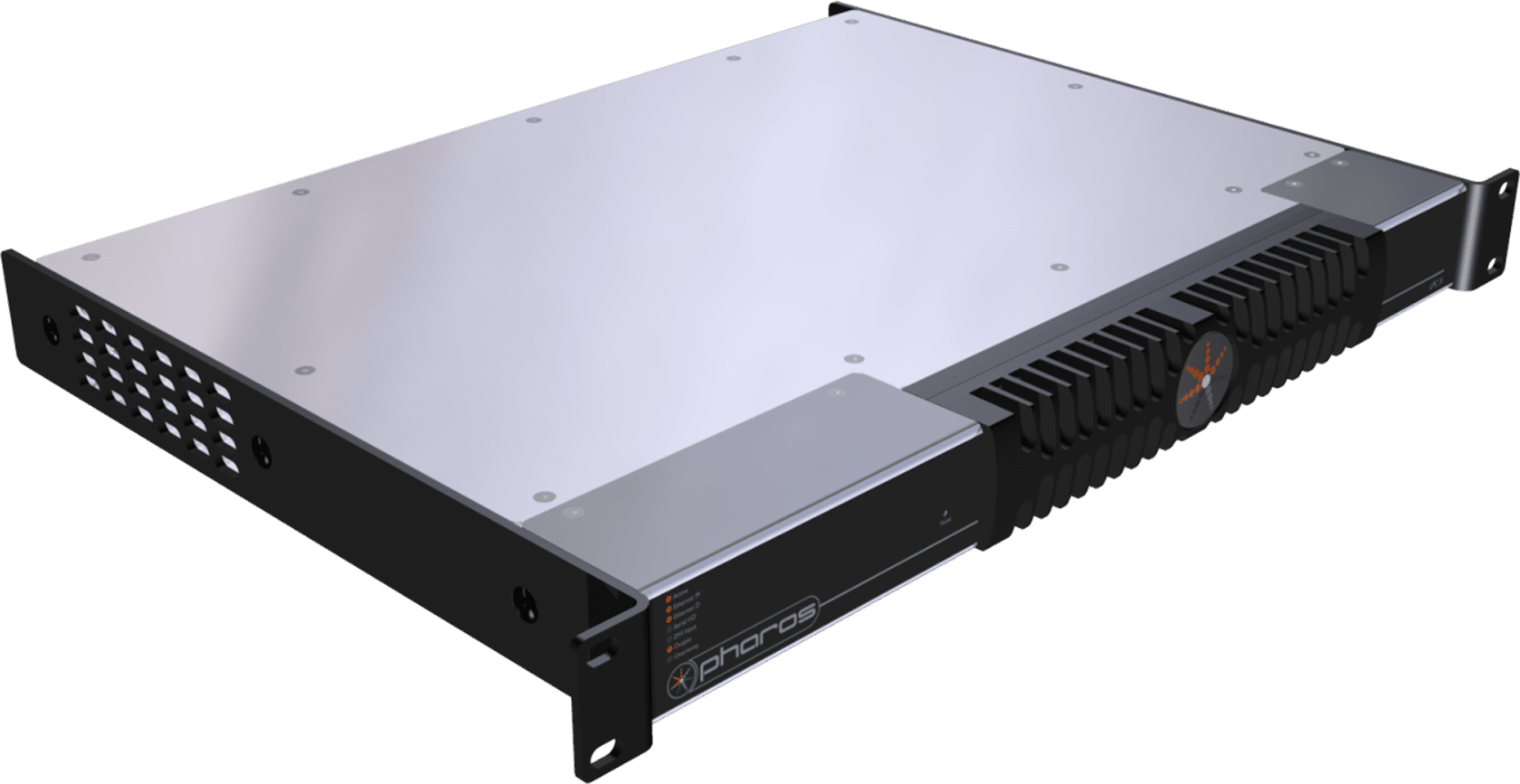

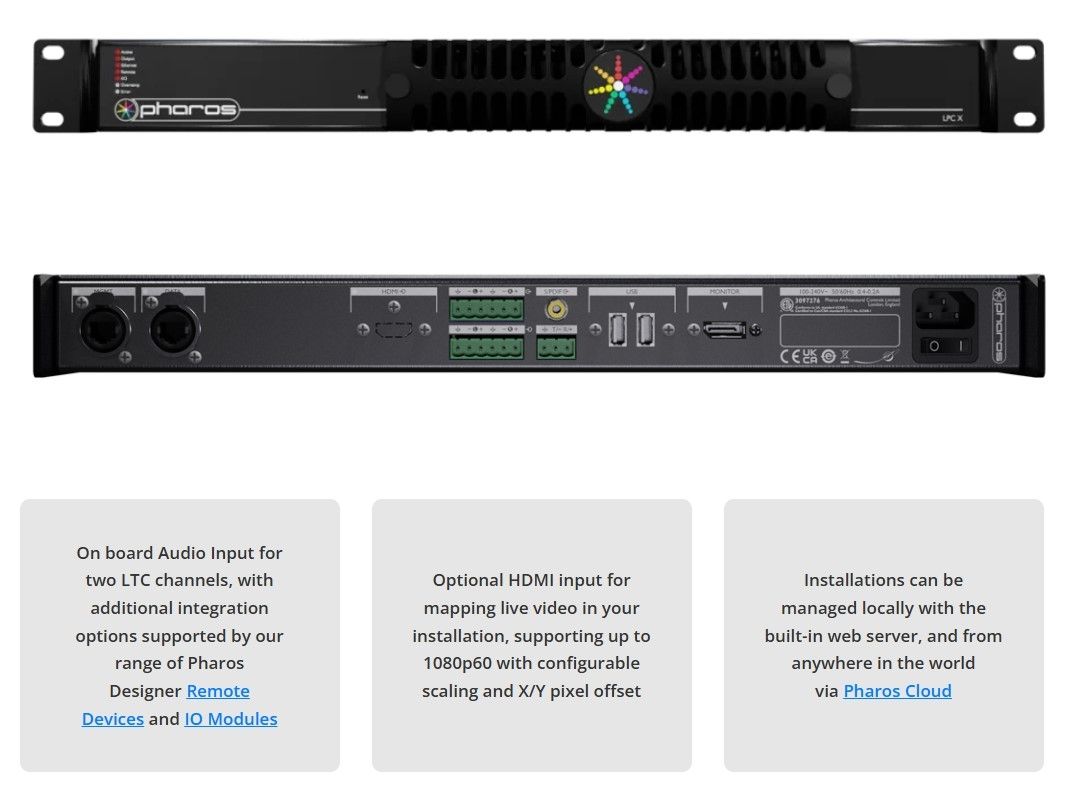

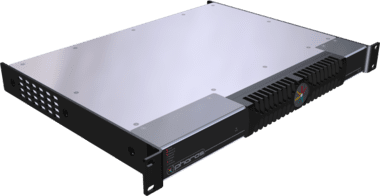

Pharos Designer LPC X Lighting Playback Controller

The award-winning Pharos Designer LPC X (Lighting Playback Controller X) offers an extreme level of power and integration, making it an ideal lighting control solution for architectural and landmark lighting installations requiring significant channel counts.

The LPC X is available in capacities ranging from 10 DMX universes (5,120 channels) up to 100 DMX universes (51,200 channels) from a single unit, with further scaling (for even larger architectural lighting installations) by using multiple LPC X connected and synchronised automatically over Ethernet.

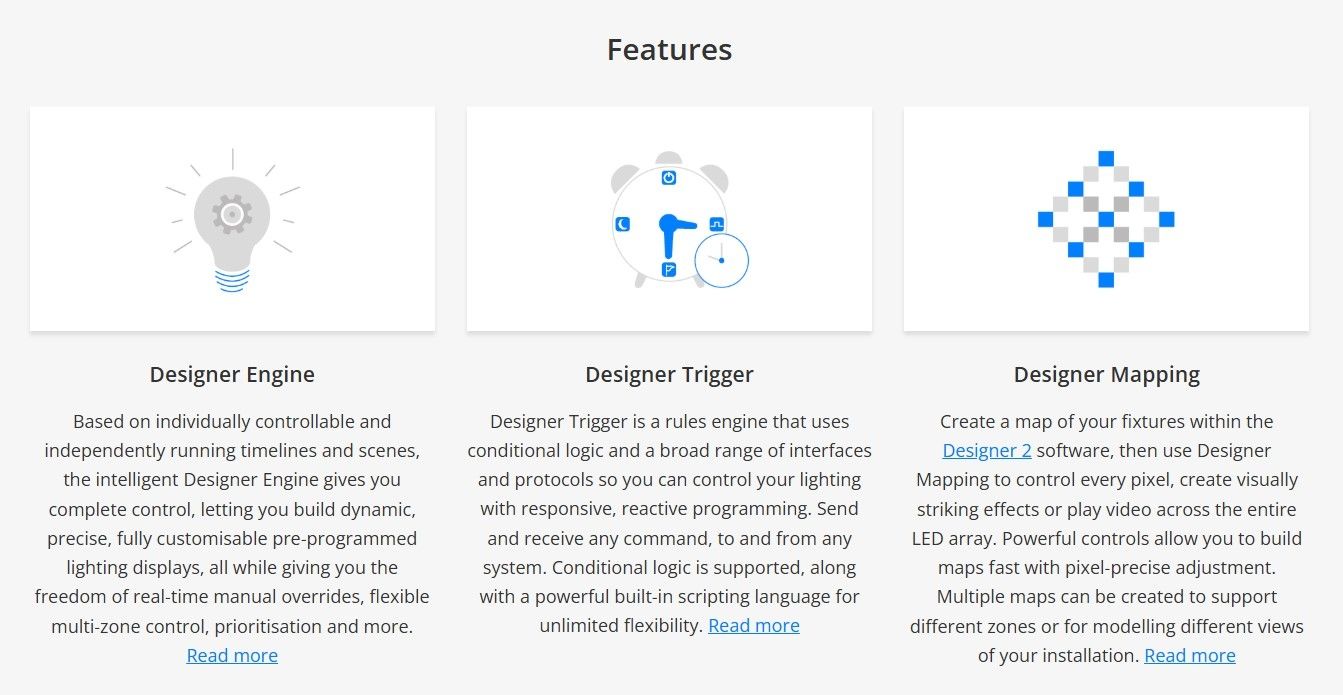

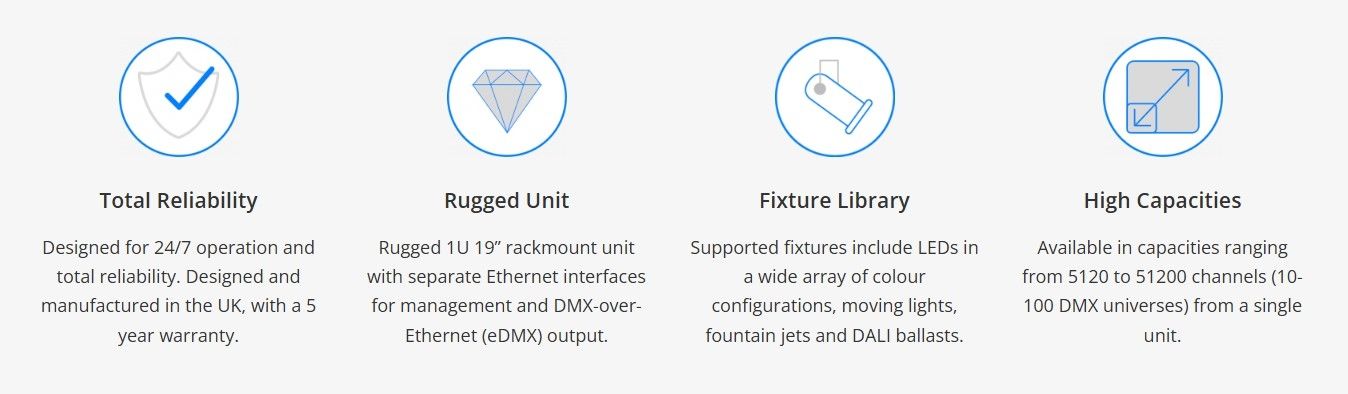

Features

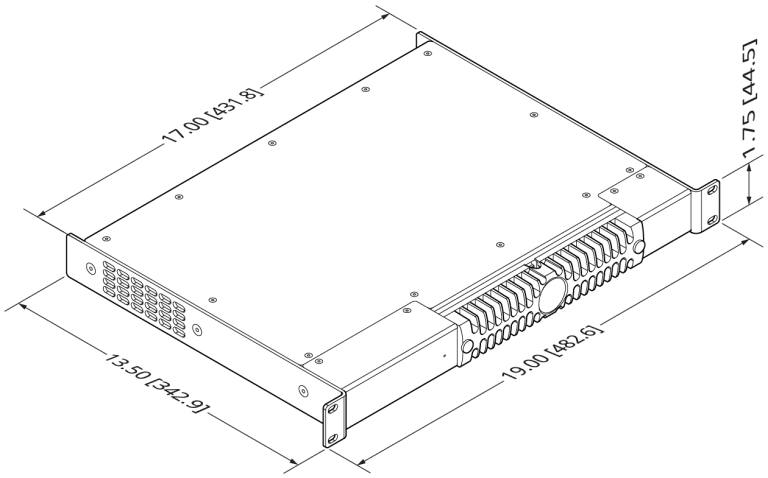

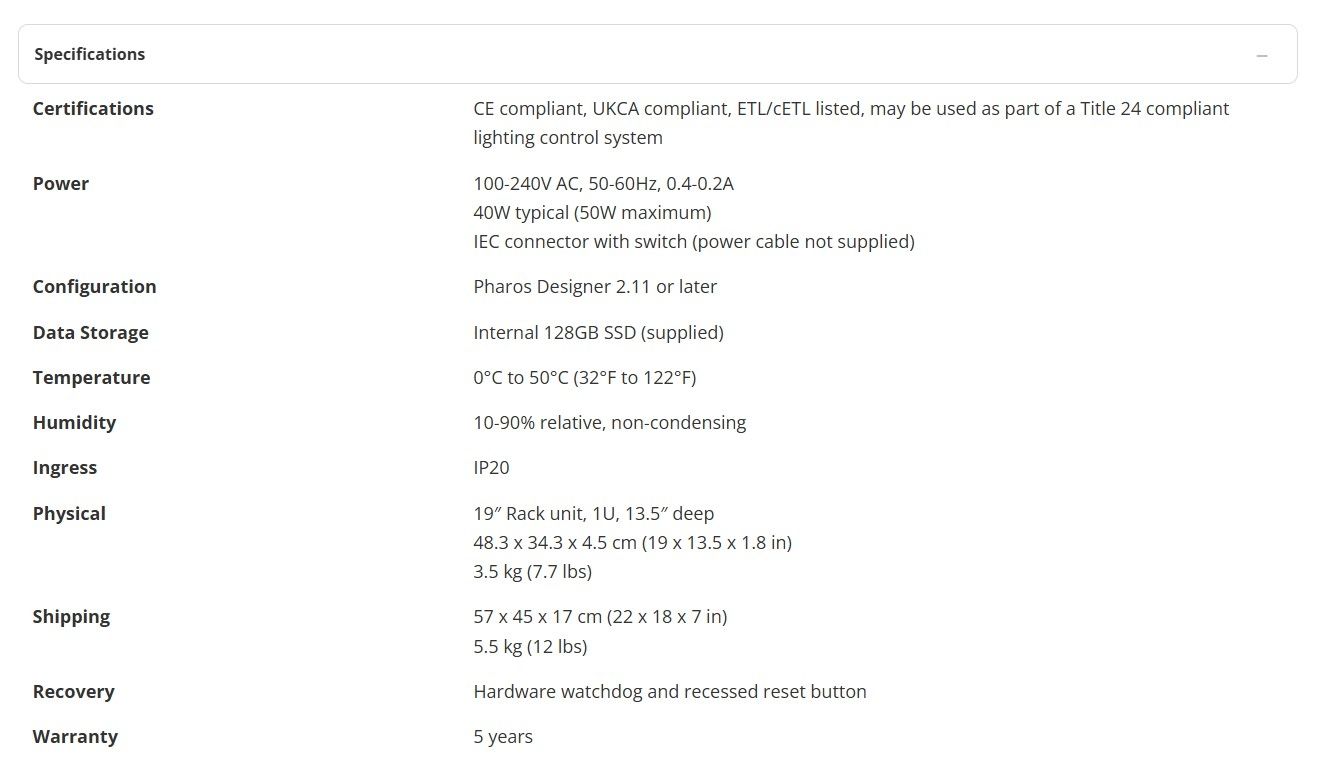

Power 100-240V AC, 50-60Hz, 0.4-0.2A 40W typical (50W max.) Data Storage Internal 128GB SSD (supplied) Temperature 0°C to 50°C (32°F to 122°F) Humidity 10-90% relative, non-condensing Ingress IP20 Physical 19″ Rack unit, 1U, 13.5″ deep Dimensions 48.3 x 34.3 x 4.5 cm (19 x 13.5 x 1.8 in) Weight 3.5 kg (7.7 lbs) Compliance ETL - USA & Canada CE UKCA Data Sheet

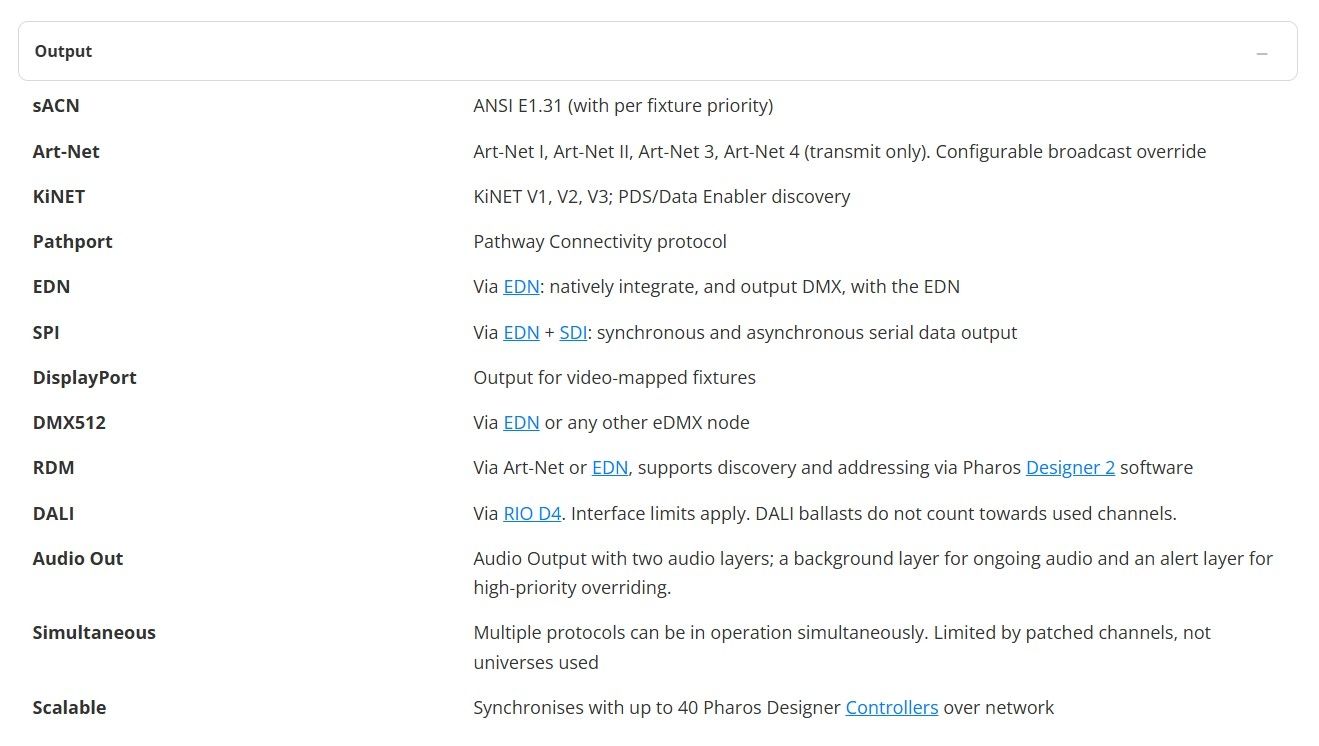

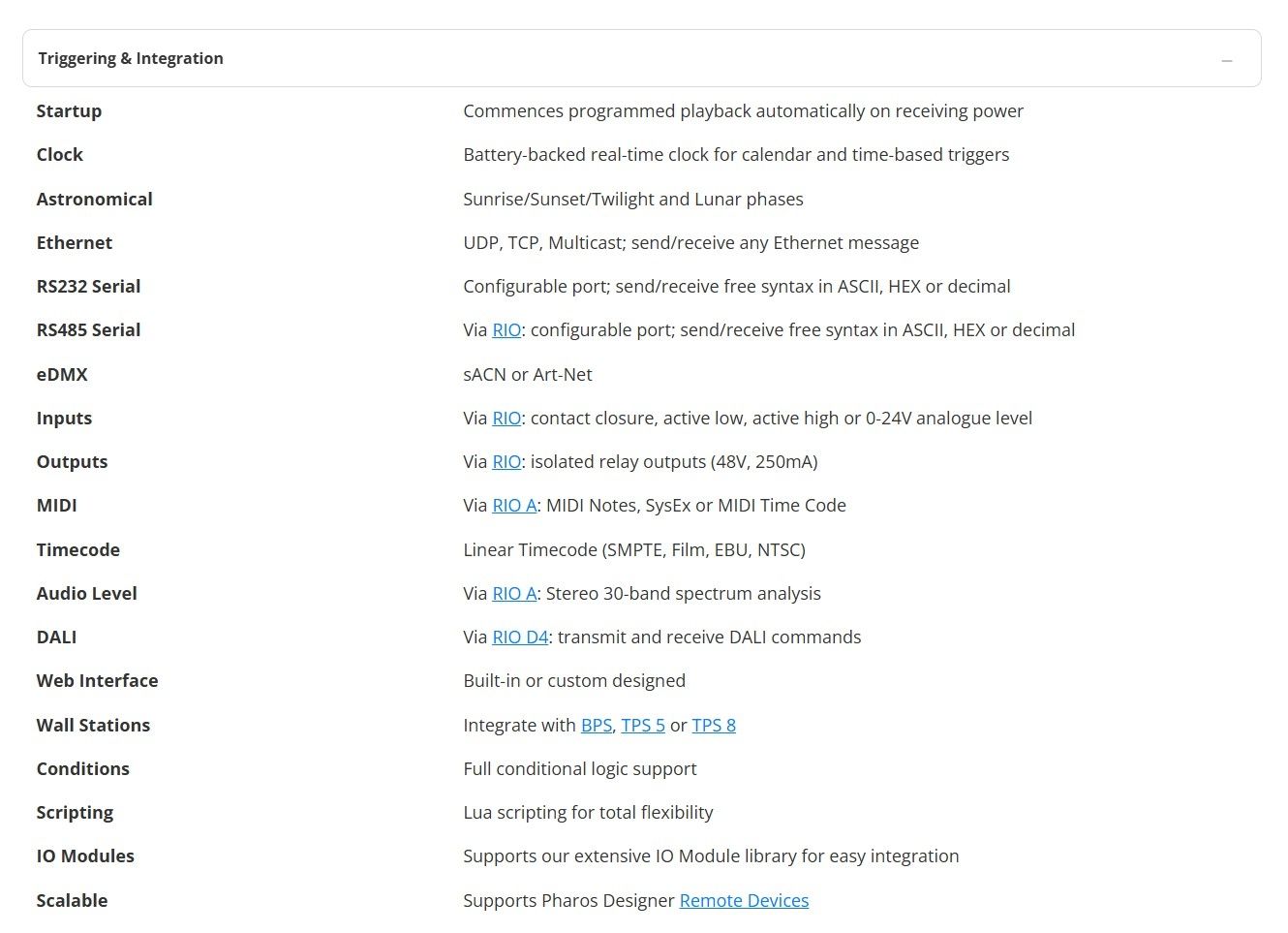

Specifications

Downloads

Data Sheet

Product Configurator

LPC X S3 _
Login to view pricing
Reset to Default Clear Selected Add

Customise Pharos Designer LPC X Lighting Playback Controller below

Configuration

Required

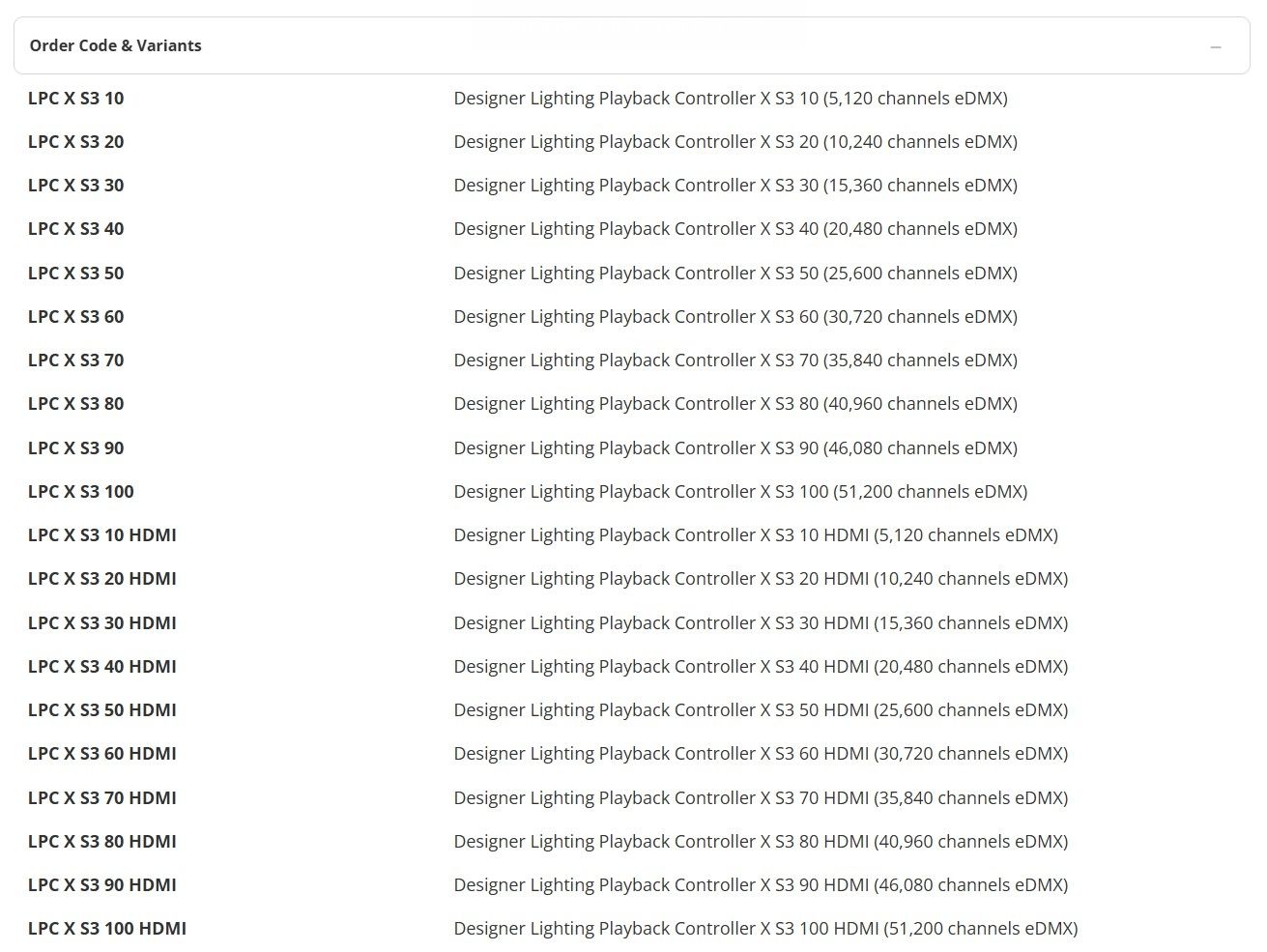

5,120 channels eDMX (10)

10,240 channels eDMX (20)

15,360 channels eDMX (30)

20,480 channels eDMX (40)

25,600 channels eDMX (50)

30,720 channels eDMX (60)

35,840 channels eDMX (70)

40,960 channels eDMX (80)

46,080 channels eDMX (90)

51,200 channels eDMX (100)
