Pharos Designer 5” Touch Panel Station

Pharos Designer 5” Touch Panel Station - TPS 5

Pharos Designer 5” Touch Panel Station

Configure this product Features Specifications

Product Overview

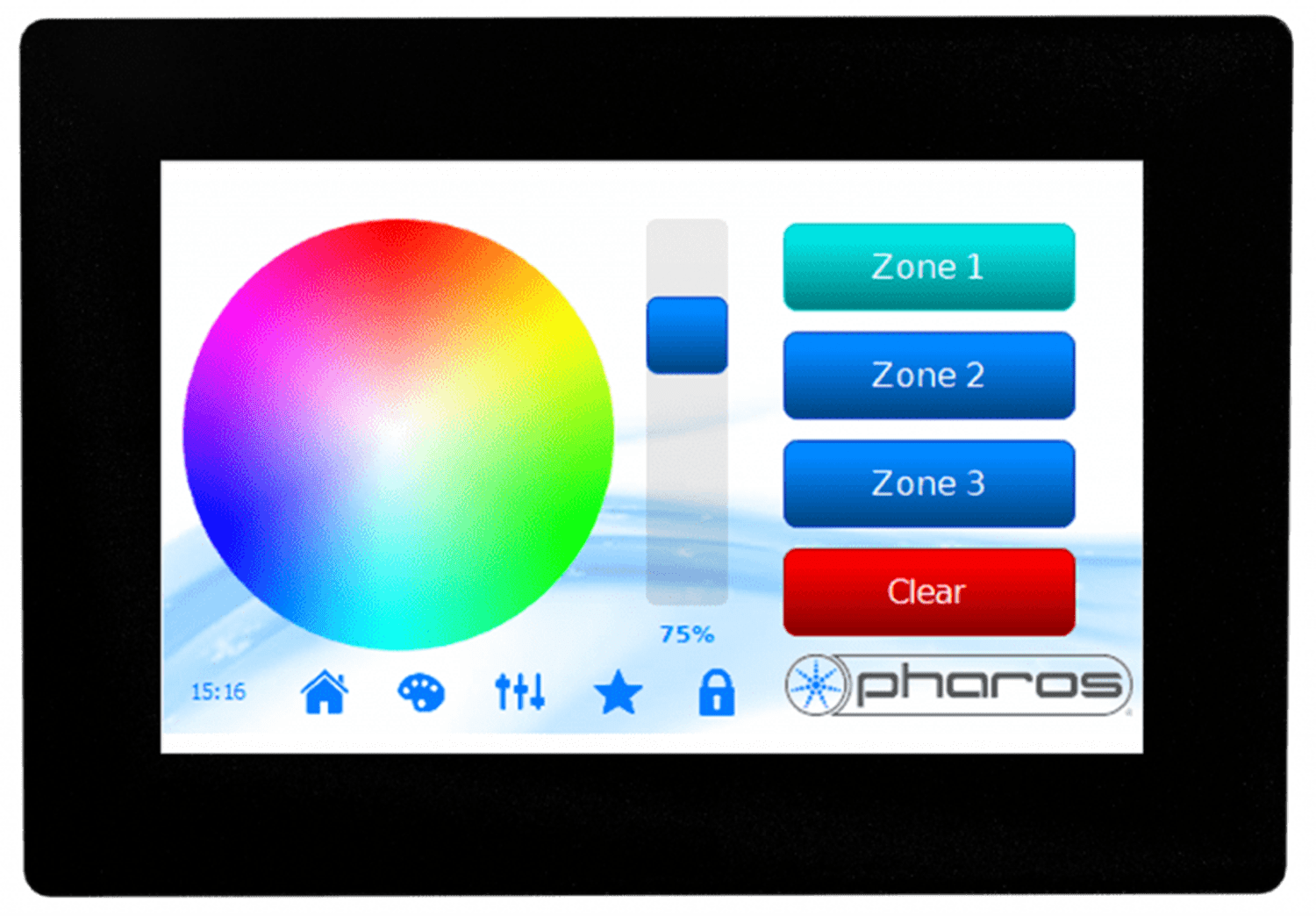

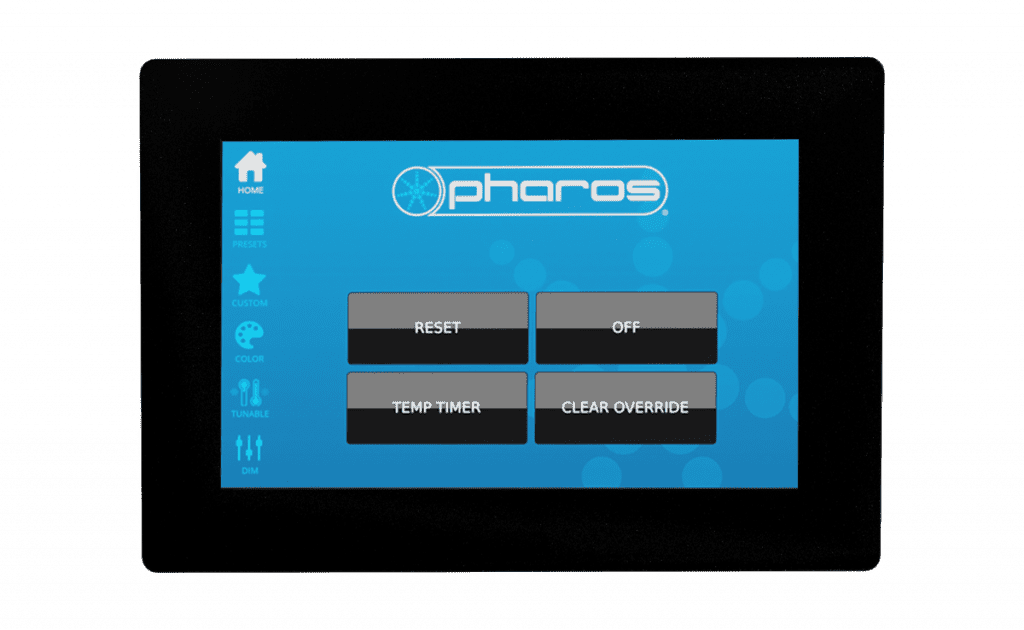

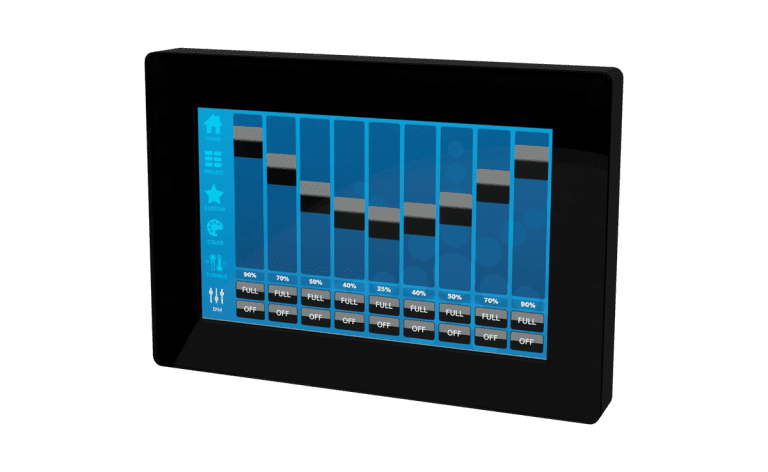

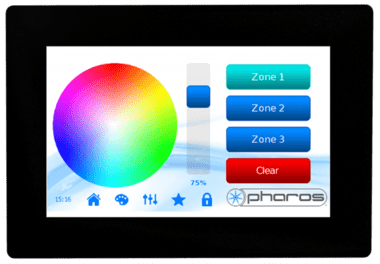

The Pharos Designer TPS 5 (Touch Panel Station 5”) is an elegant interface with a customisable, 5” capacitive touchscreen, compatible with any Pharos Designer Controller.

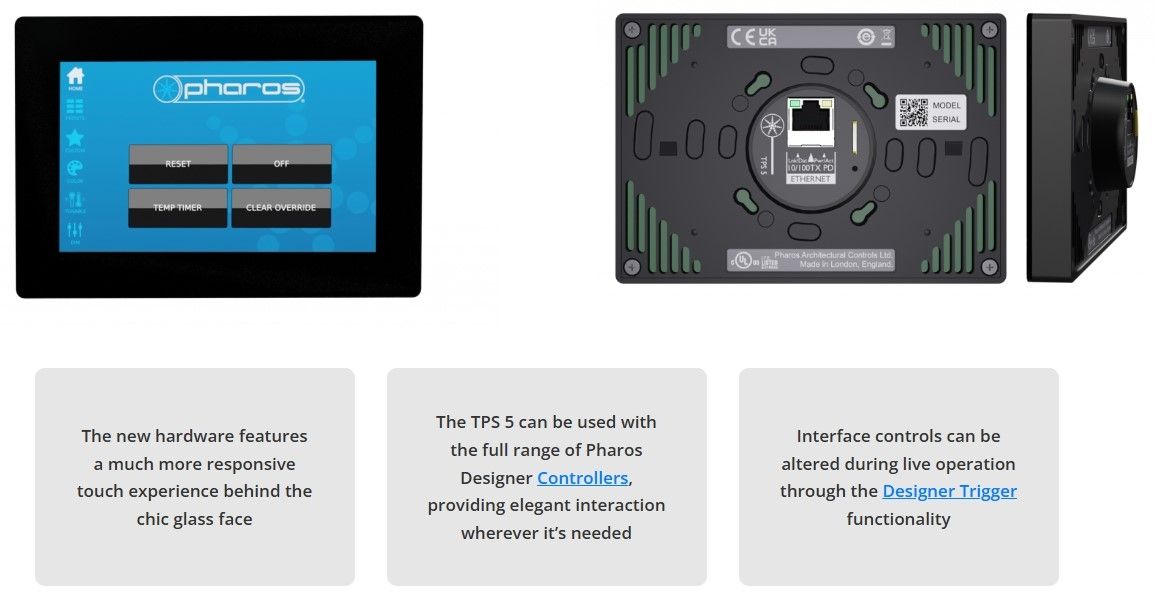

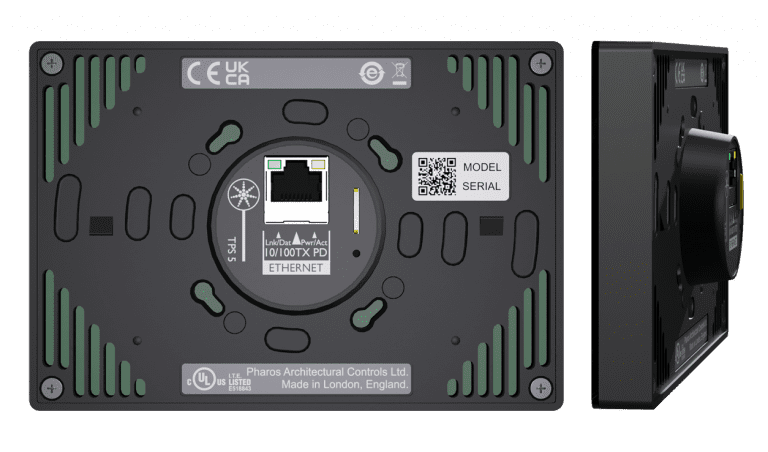

The front panel is a seamless, uninterrupted glass plate available in Black and in White, giving an elegant touch experience, with improvements to its core functionality, touch performance, screen resolution, and vastly superior aesthetics. And, with a unique and innovative universal mounting solution, the TPS 5 will be easy to wall mount in your installation, regardless of region.

Features

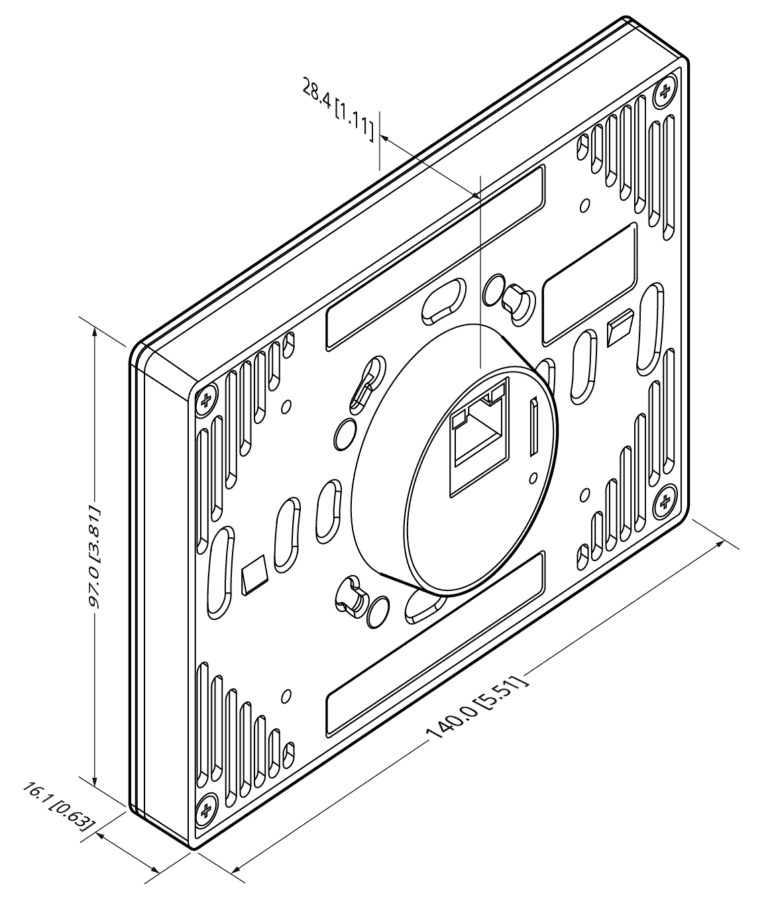

Power PoE (IEEE802.3af, Class 0), 7W typical Data Storage Removable MicroSD Card (supplied) Temperature 0°C to 50°C (32°F to 122°F) Humidity 10-90% relative, non-condensing Ingress IP40 Physical Wall mounted, partly recessed, mounting plate Dimensions 14 x 9.7 x 2.8 cm (5.5 x 3.8 x 1.1 in) Weight 0.25 kg (0.6 lbs) (ex. mounting plate) Compliance UL - USA & Canada
