Pharos Designer 8 Button Panel Station

Pharos Designer 8 Button Panel Station - BPS

Pharos Designer 8 Button Panel Station

Configure this product Features Specifications

Product Overview

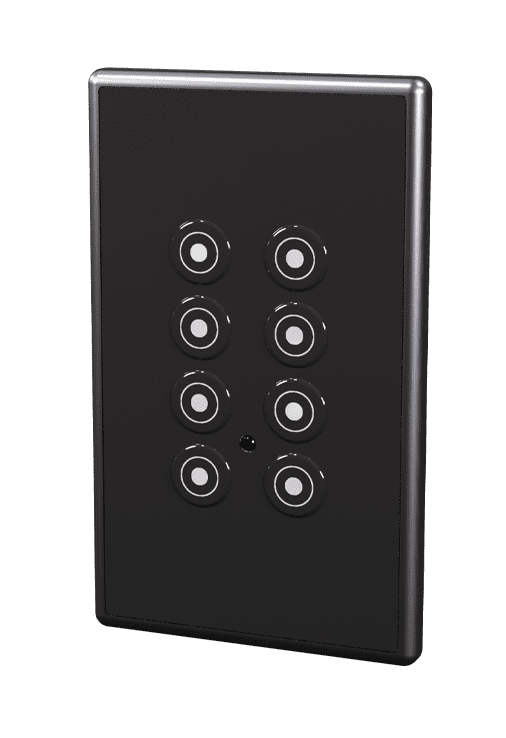

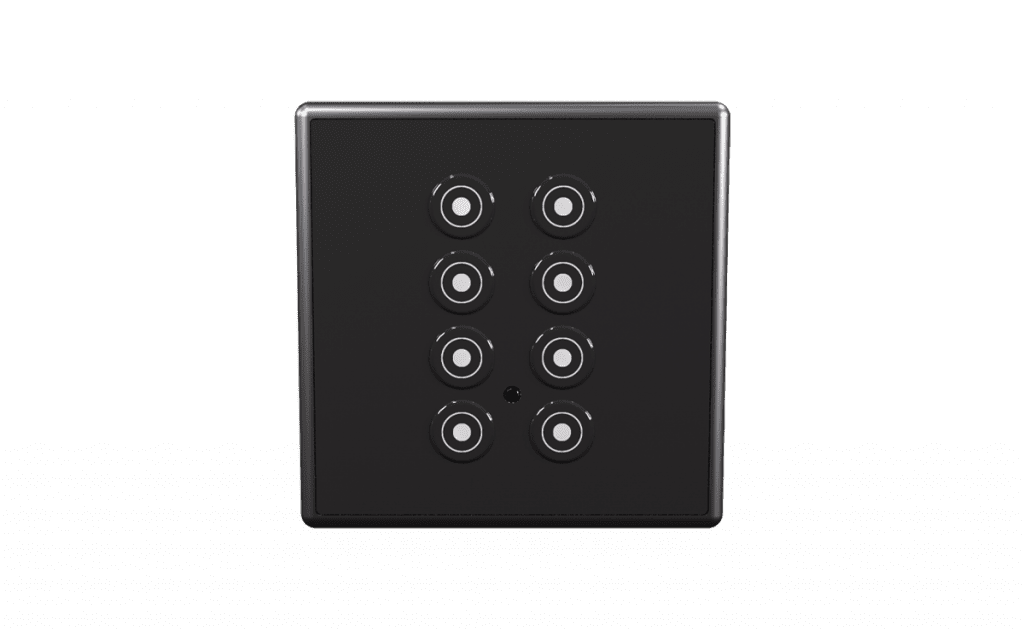

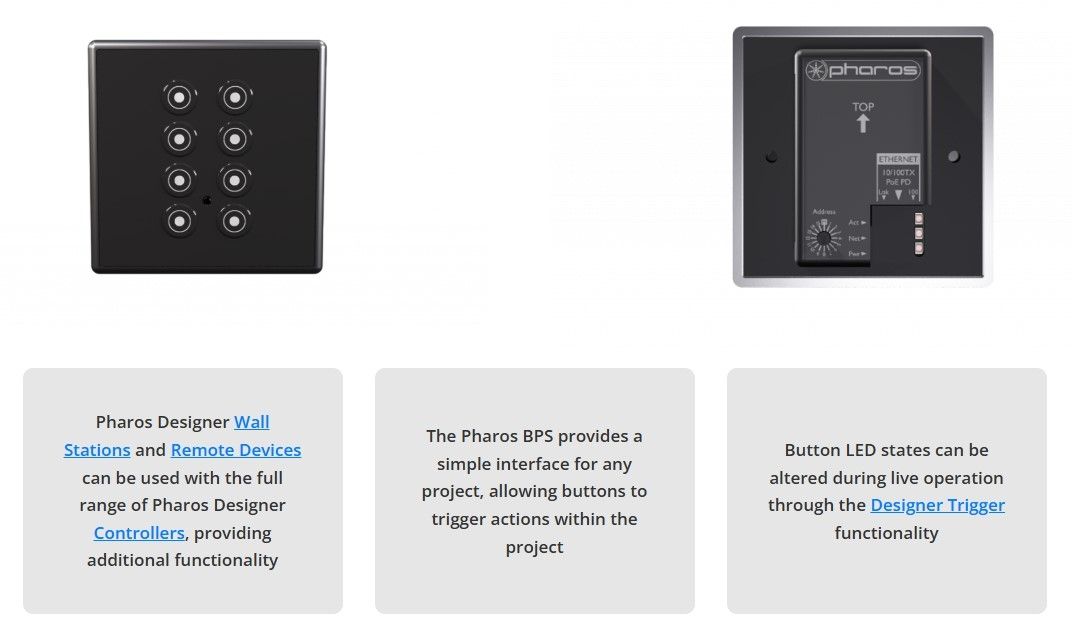

The Pharos Designer BPS (Button Panel Station) is a versatile eight-button station with integrated button LEDs that works with any Pharos Designer Controller.

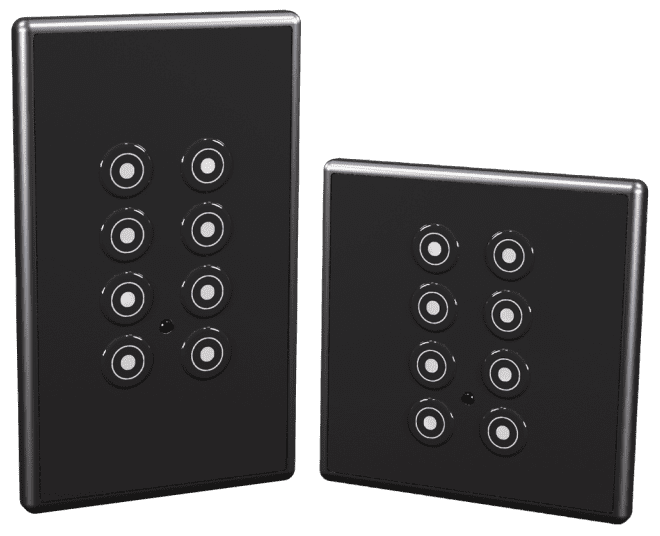

The stylish BPS is available in a range of finishes and there are two variants for compatibility with either US or UK back boxes. Install is easy and convenient as the BPS only requires a single Power-over-Ethernet (PoE) network connection.

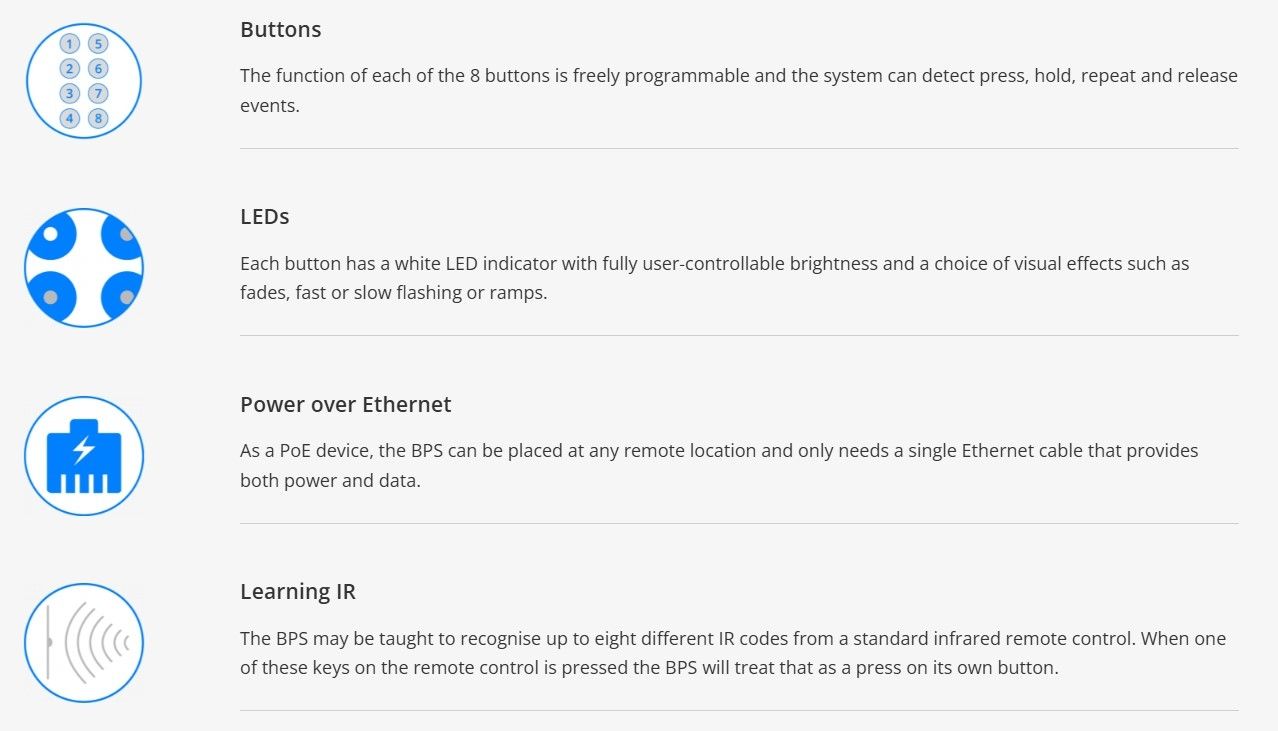

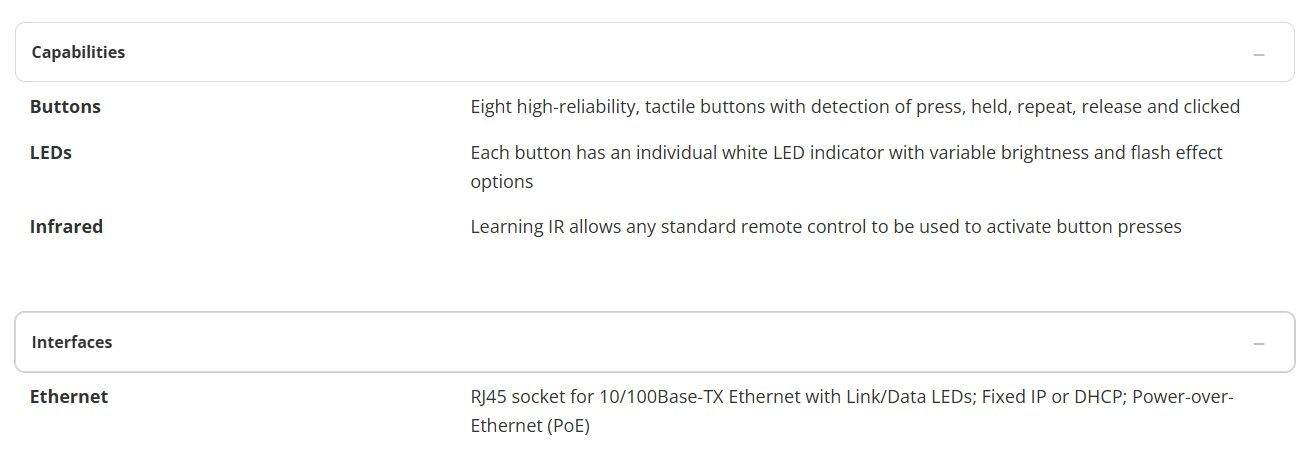

Features

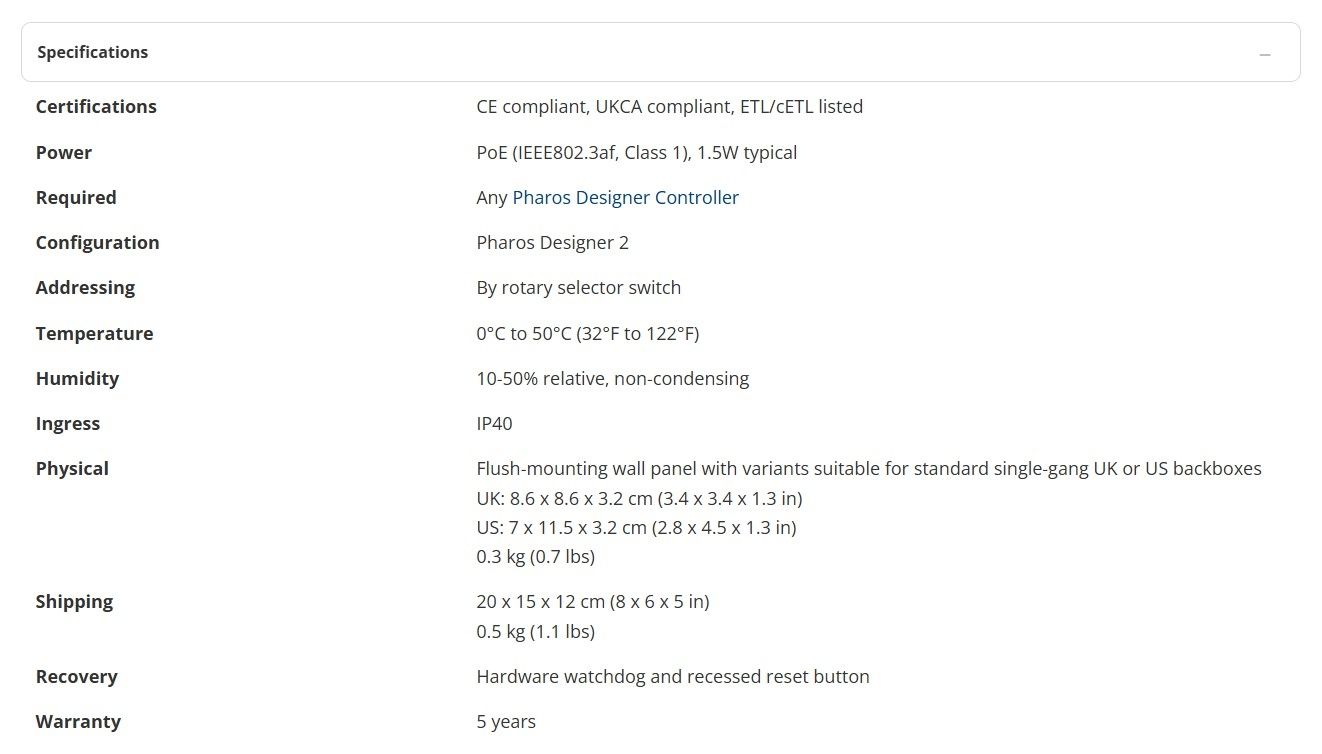

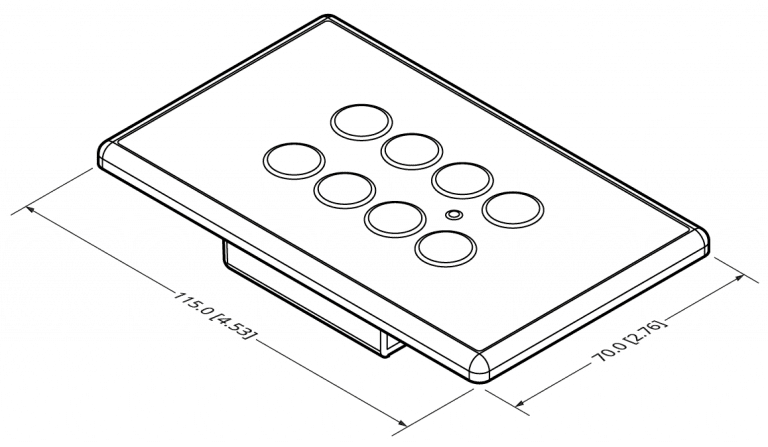

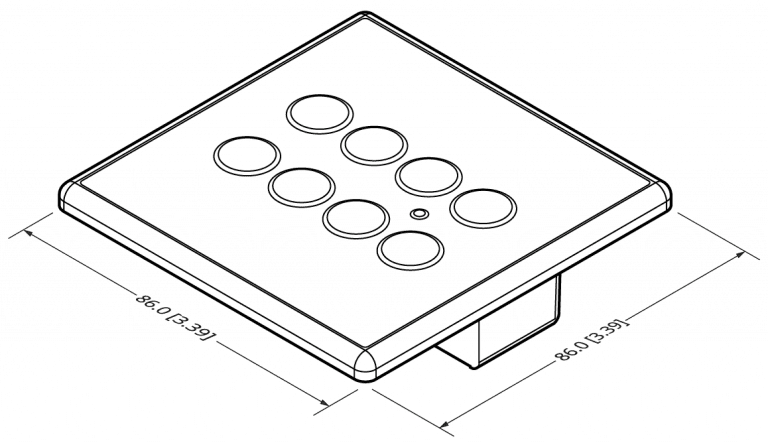

Power PoE (IEEE802.3af, Class 1), 1.5W typical Temperature 0°C to 50°C (32°F to 122°F) Humidity 10-50% relative, non-condensing Ingress IP40 Physical Flush-mounting wall panel Dimensions UK 8.6 x 8.6 x 3.2 cm (3.4 x 3.4 x 1.3 in) Dimensions US 7 x 11.5 x 3.2 cm (2.8 x 4.5 x 1.3 in) Weight 0.3 kg (0.7 lbs) Compliance
