Product Overview

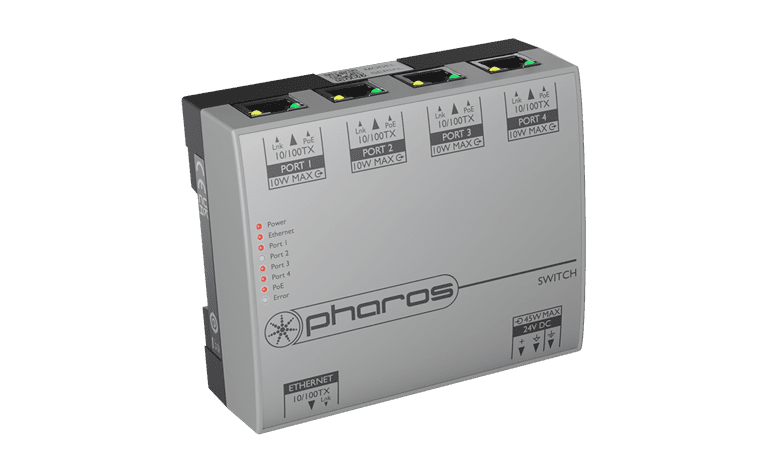

The Pharos Expert XPS Switch provides a simple power and networking solution for four Power-over-Ethernet devices.

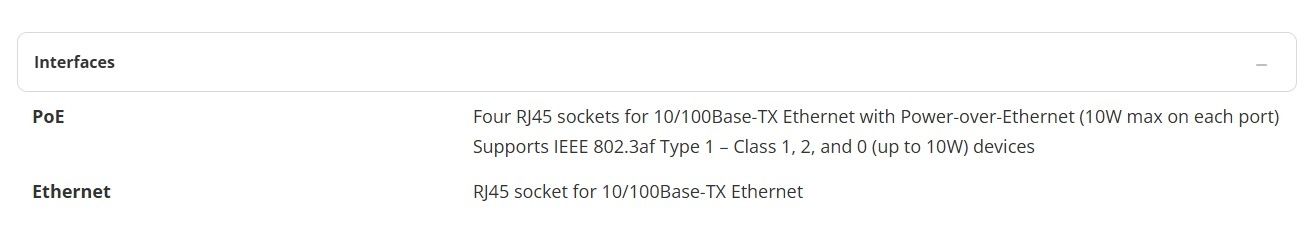

An unmanaged switch with five 10/100Base-TX Ethernet ports with standard RJ45 sockets, perfect for connecting power and data between Designer Controllers and Designer Remote Devices. Four ports are enabled for Power-over-Ethernet with an uplink connection to a computer, network or other non-PoE device. Switch comes in a cost-effective low-profile plastic DIN rail enclosure and only requires a 24V DC power supply.
Features

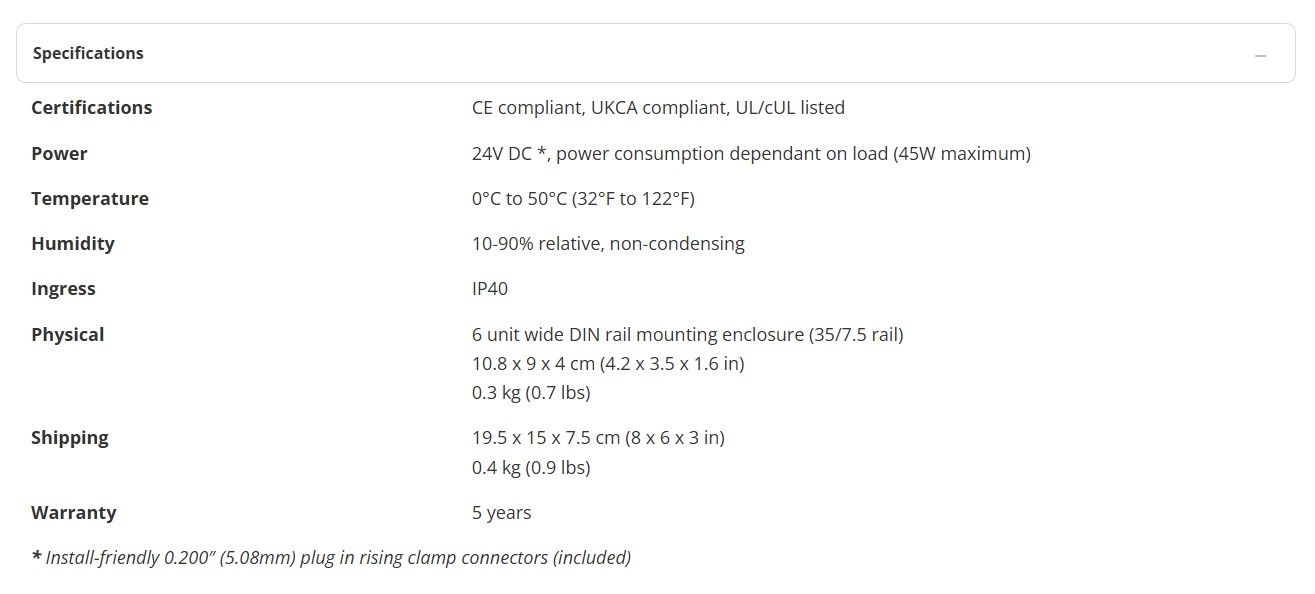

Power 24V DC Consumption load dependant (45W max.)
Temperature 0°C to 50°C (32°F to 122°F)
Humidity 10-90% relative, non-condensing
Ingress IP40

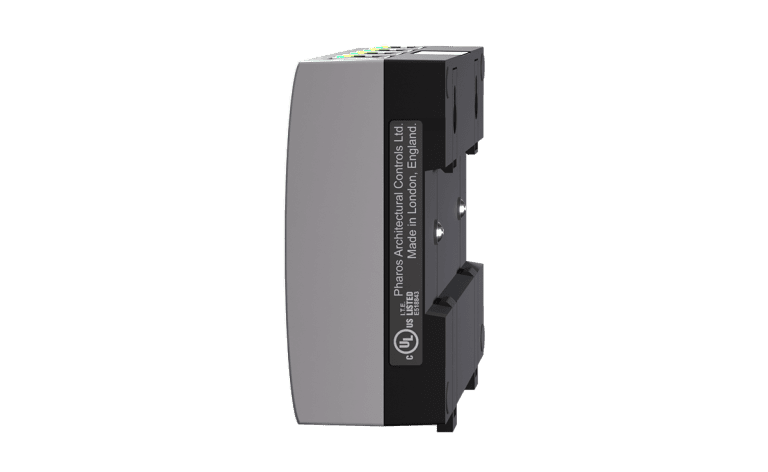

Physical 6 unit wide DIN rail mounting enclosure (35/7.5 rail)
Dimensions 10.8 x 9 x 4 cm (4.2 x 3.5 x 1.6 in)
Weight 0.3 kg (0.7 lbs)
Compliance
